API One Piece Kelly Valves 5000\10000\15000psi

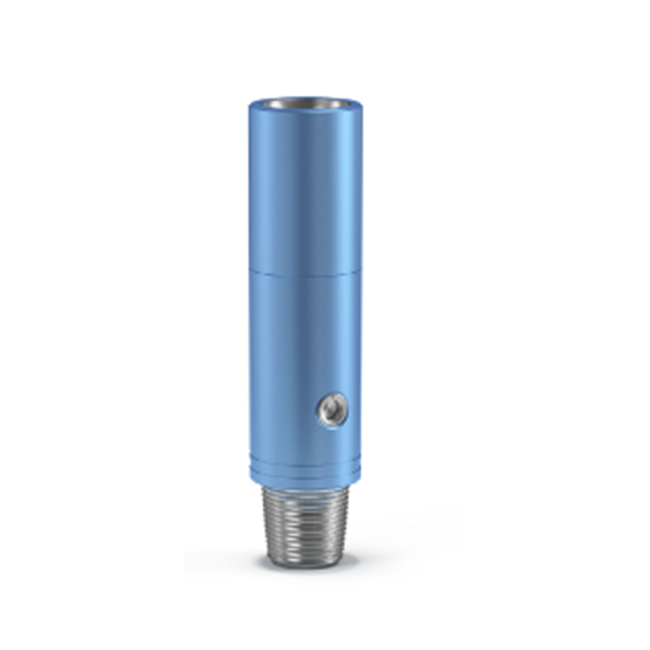

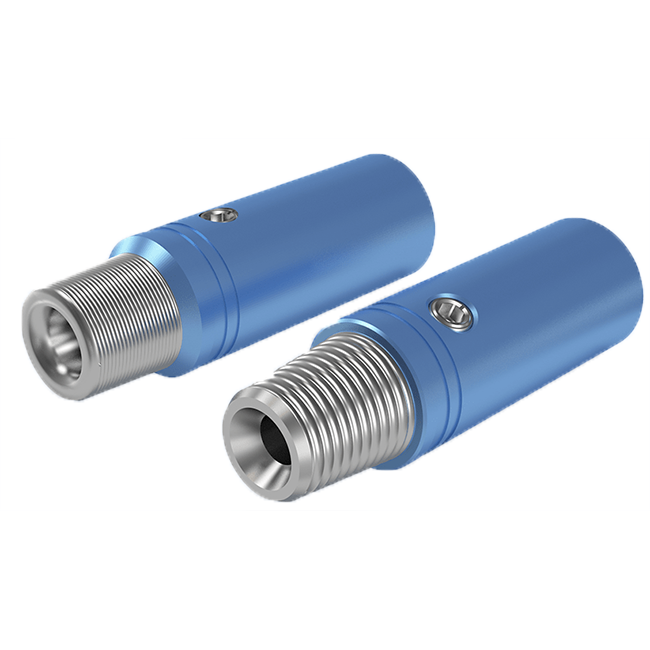

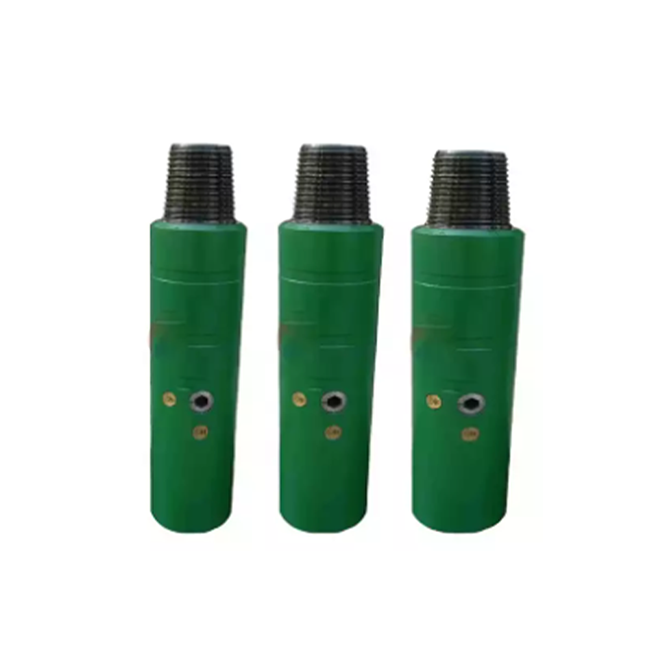

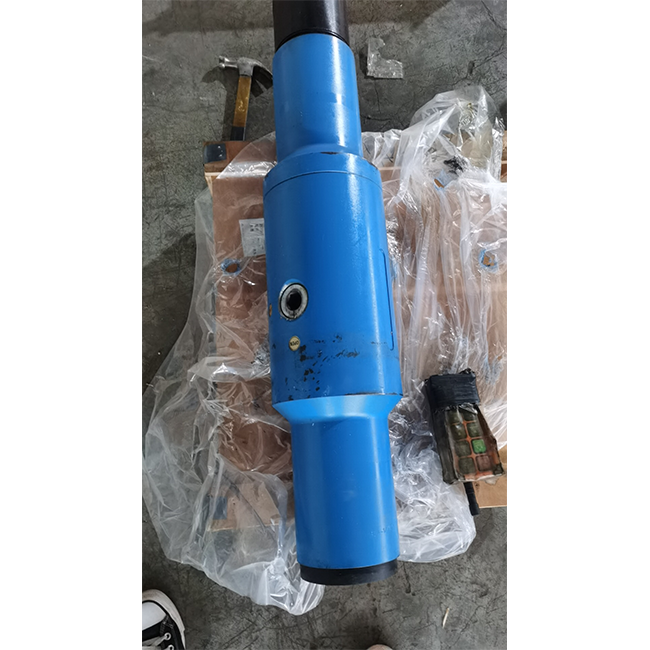

One piece kelly valves
5,000 psi, 10,000 psi & 15,000 psi
Designed for automatic overlap and pressurization of the drilling instrument tube channel in drilling oil and gas wells, and also in maintenance and emergency works.

When this valve is removed from the string, the internal parts are accessible for easy field repair. The smooth outside diameter allows this valve to be run anywhere in the string.





Kelly valves for drill string with the locking thread type KSHZ

Kelly valve Cargo capacity kN (tf) Length OD ID Coupling thread API 7 Weight
KSHZ-65R1 700 (70) 0.86ft / 263 mm 3″/ 77 mm 1″/ 25 mm NC-23 13.23 lbs/ 6 kg
KSHZ-66R1 700 (70) 0.86ft / 263 mm 3 1/8″/ 80 mm 1″/ 25 mm 2 3/8 Reg 13.23 lbs/ 6 kg
KSHZ-73R1 800 (80) 0.97ft / 295 mm 3 3/8″/ 86 mm 1 1/8″/ 28 mm NC-26 (2 3/8 IF) 19.84 lbs/ 9 kg
KSHZ-76R1 1070 (107) 1.01ft / 308 mm 3 3/4″/ 95 mm 1 1/8″/ 28 mm 2 7/8 Reg 24.25 lbs/ 11 kg
KSHZ-86R1 1140 (114) 1.09 ft/ 331 mm 4 1/4″/ 108 mm 1 3/8″/ 36 mm NC-31 (2 7/8 IF) 33.07 lbs/ 15 kg
KSHZ-88R1 1200 (120) 1.13 ft/ 343 mm 4 1/4″/ 108 mm 1 3/8″/ 36 mm 3 1/2 Reg 35.27 lbs/ 16 kg
KSHZ-102R1 1600 (160) 1.27 ft/ 388 mm 4 6/8″/ 120 mm 2″/ 50 mm NC-38 (3 1/2 IF) 48.5 lbs/ 22 kg
KSHZ-108R1 1700 (170) 1.36 ft/ 413 mm 5 1/4″/ 133 mm 2″/ 50 mm NC-40 (4 FH) 59.53 lbs/ 27 kg
KSHZ-117R1 2100 (210) 1.32 ft/ 403 mm 5 1/2″/ 140 mm 2″/ 50 mm 4 1/2 Reg 66.14 lbs/ 30 kg
KSHZ-122R1 2200 (220) 1.4 ft/ 428 mm 5 3/4″/ 146 mm 2 1/4″/ 58 mm NC-46 (4 IF) 74.96 lbs/ 34 kg
KSHZ-133R1 2500 (250) 1.42 ft/ 433 mm 6 1/8″/ 155 mm 2 2/5″/ 62 mm NC-50 (4 1/2 IF) 81.57 lbs/ 37 kg
KSHZ-147R1 2700 (270) 1.61 ft/ 490 mm 7″/ 178 mm 2 3/4″/ 70 mm 5 1/2 FH 127.87 lbs/ 58 kg
KSHZ-152R1 4000 (400) 1.67 ft/ 508 mm 7 3/4″/ 197 mm 3″/ 75 mm 6 5/8 Reg 169.76 lbs/ 77 kg



Kelly valves for pump-compressor pipes with tubing thread type KSHN

Kelly valve Cargo capacity kN (tf) Length OD ID Coupling thread API 5B Weight
KSHN-48R1 170 (17) 0.62ft / 190 mm 2 1/4″/ 55,9 mm 1″/ 24 mm NUE-1,900″ 13.23 lbs/ 6 kg
KSHN-60R1 300 (30) 0.69ft / 210 mm 2 7/8″/ 73 mm 1″/ 25 mm NUE-2 3/8″ 13.23 lbs/ 6 kg
KSHN-73R1 600 (60) 0.94ft / 285 mm 3 1/2″/ 89 mm 1 2/5″/ 36 mm NUE-2 7/8″ 19.84 lbs/ 9 kg
KSHN-89R1 600 (60) 1.05 ft/ 320 mm 4 1/4″/ 108 mm 1 4/5″/ 46 mm NUE-3 1/2″ 35.27 lbs/ 16 kg
KSHN-102R1 900 (90) 1.15 ft/ 350 mm 4 3/4″/ 120,6 mm 2″/ 50 mm NUE-4″ 44.09 lbs/ 20 kg
KSHN-114R1 1200 (120) 1.15 ft/ 350 mm 5 1/4″/ 132 mm 2 1/4″/ 58 mm NUE-5 1/2″ 52.91 lbs/ 24 kg
