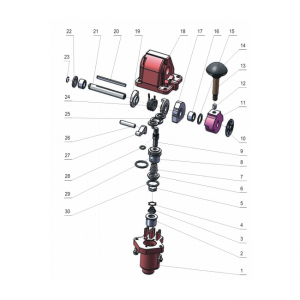

1″Main Air Control Valve（1/4”KQKF-00-00）

1 / 4 ”空气主控阀1″Main Air Control Valve（1/4”KQKF-00-00）
In repair kit维修包 (Item)序号 图号(Part No.) 名称(Description) 数量Qty
1 1/4″KQKF-00-01 阀体 Valve Body 1
2 1/4″KQKF-00-04 导套Guide Bush 1
3 1/4″KQKF-00-02 圆锥弹簧Conical Spring 1
4 1/4″KQKF-00-03 支承垫Supporting Gasket 1
5 1/4″KQKF-00-05 阀芯 Valve Core 1
6 1/4″KQKF-00-06 阀座 Valve seat 1
7 1/4″KQKF-00-07 圆锥弹簧Conical Spring 1
8 1/4″KQKF-00-08 进排气套Air Inlet/Outlet Bush 1
9 1/4″KQKF-00-10 顶杆 Tappet 1
10 1/4″KQKF-00-23 标牌Name Plate 1
11 1/4″KQKF-00-22 手柄套Handle Sleeve 1
12 1/4″KQKF-00-21 锁紧胶垫 Lock Rubber Pad 1
13 1/4″KQKF-00-25 螺栓Handle 1
14 1/4″KQKF-00-20 手柄 Handle 1
15 1/4″KQKF-00-19 垫片 Gasket 1
16 1/4″KQKF-00-18 铜套 Copper Sleeve 2
17 1/4″KQKF-00-17 凸轮 Cam 1
18 1/4″KQKF-00-13 支承壳体Housing 1
19 1/4″KQKF-00-15 扭转弹簧支架 Torsion Spring Support 2
20 1/4″KQKF-00-24 键 Key 1
21 1/4″KQKF-00-14 轴 Spindle 1
22 GB 95-2000 10 垫圈 Washer 1
23 GB895-76 10 钢丝挡圈 Retainer Ring 1
24 1/4″KQKF-00-16 扭转弹簧 Torsion Spring 1
25 1/4″KQKF-00-09 压环Pressing Ring 1
26 1/4″KQKF-00-12 圆柱销Pin 1
27 1/4″KQKF-00-11 压板Pressing Bloke 1
▲ 28 GB1235-76 11X1.9 O形密封圈O-Ring 1
▲ 29 GB1235-76 22X2.4 O形密封圈O-Ring 1
▲ 30 GB1235-76 22X2.4 O形密封圈O-Ring 1
