Description

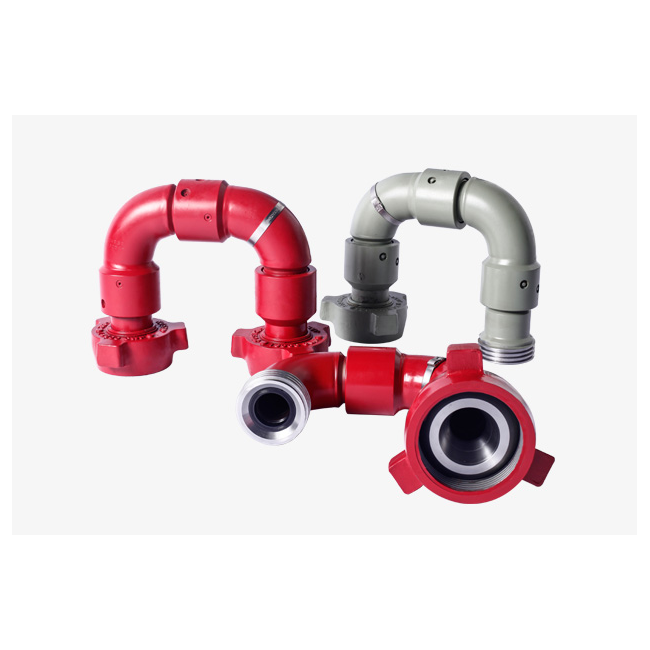

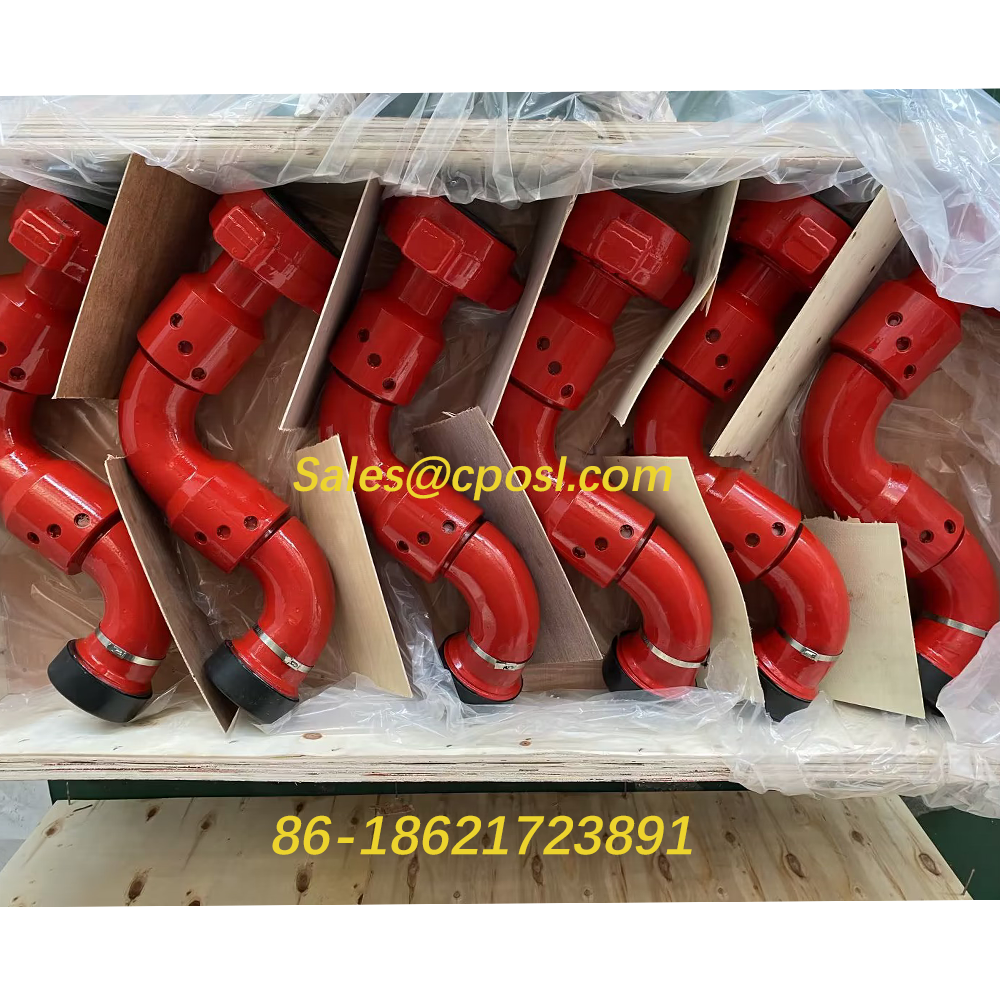

Swivel Joint is a mental pipe adapter installed with roller bearings based on the introduced technology from FMC and our technical innovation. The swivel joints with size ranging from 1” to 4” and rated working pressure rang of 25-140MPa (3626 PSI-20 000PSI) are available. Various models of swivel joints and relevant repair kits for normal temperature, low temperature and sour gas (H2S) condition can be provided.

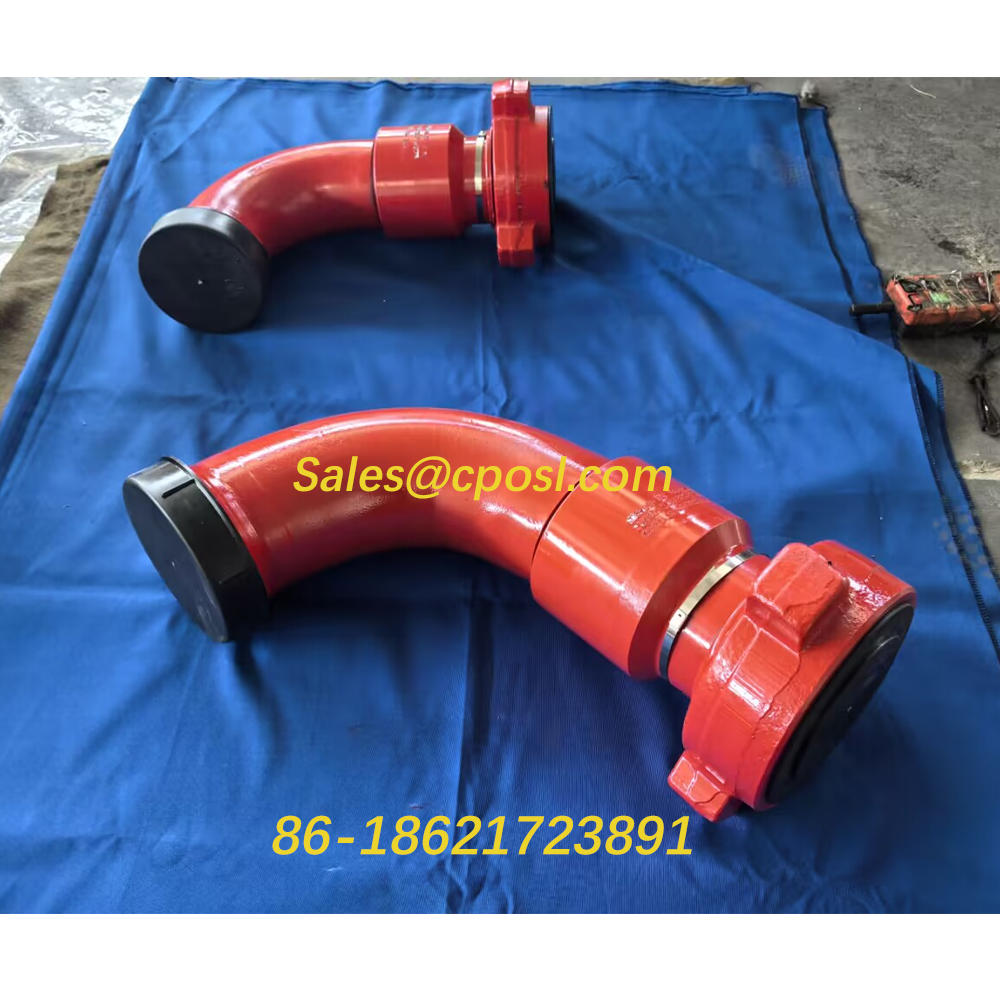

Swivel Joint Long Radius Style 20 M X F Union Ends 15000 PSI Fig 1502 Standard & H2S Service

Swivel Joint Long Radius Style 30 M X F Union Ends 15000 PSI Fig 1502 Standard & H2S Service

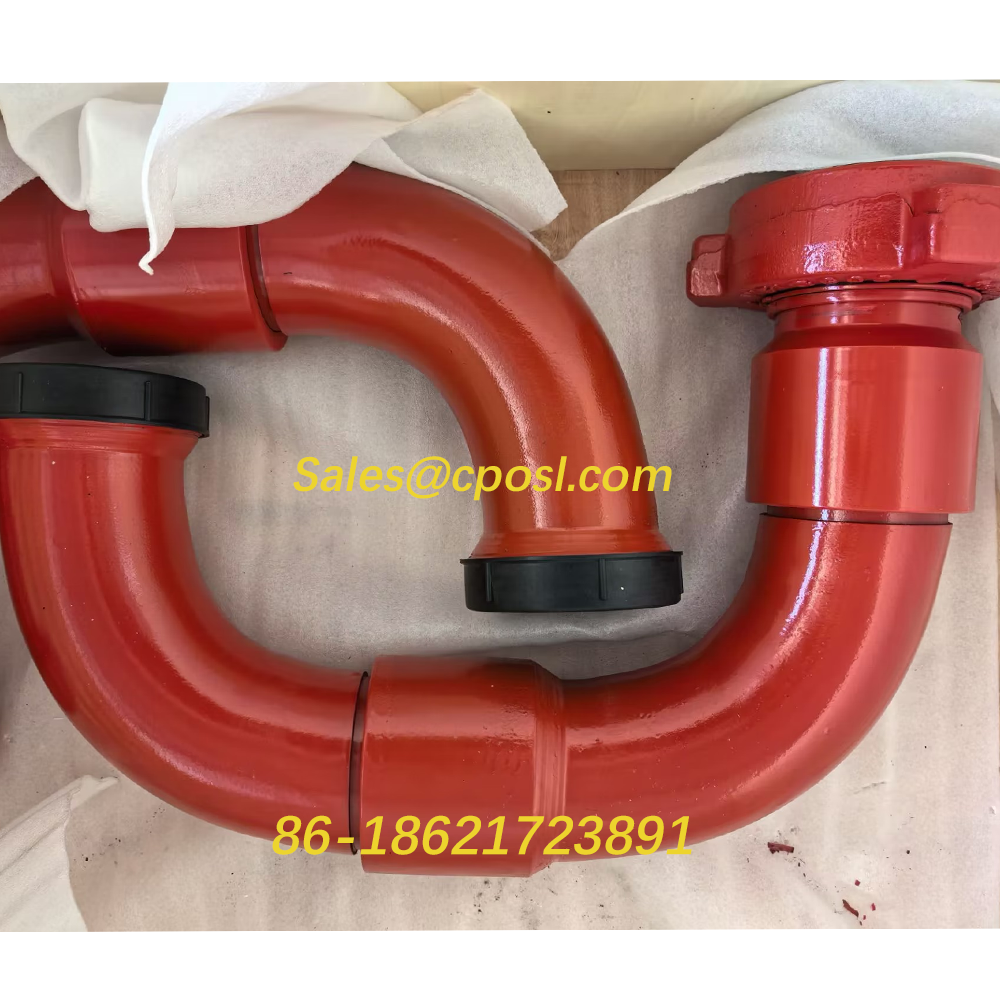

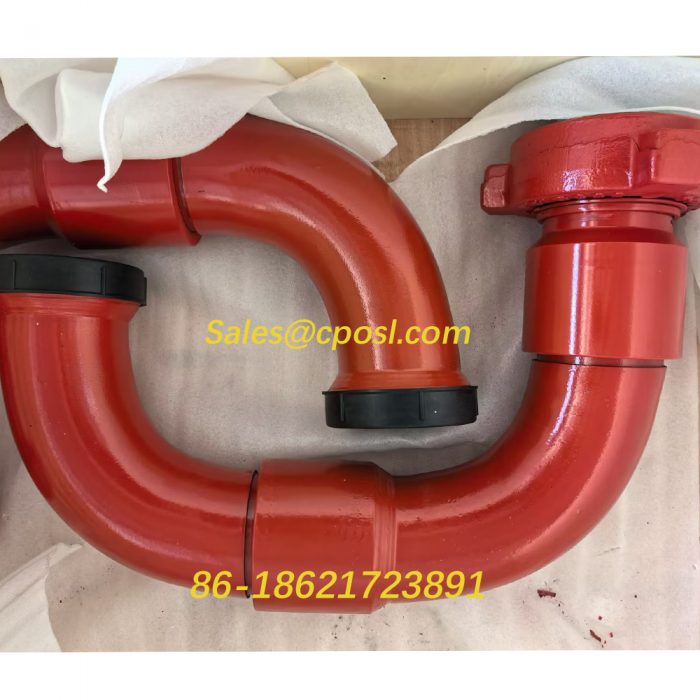

Swivel Joint Long Radius Style 50 M X F Union Ends 15000 PSI Fig 1502 Standard & H2S Service

Swivel Joint Long Radius Style 60 M X F Union Ends 15000 PSI Fig 1502 Standard & H2S Service

Swivel Joint Long Radius Style 80 M X F Union Ends 15000 PSI Fig 1502 Standard & H2S Service

Swivel Joint Long Radius Style 100 M X F Union Ends 15000 PSI Fig 1502 Standard & H2S Service



2″, 3″, 4″, CWP 6000 Psi, Figure 602, Standard Service / Sour Gas (H2S)

2″, 3″, 4″, CWP 10000 Psi, Figure 1002, Standard Service / Sour Gas (H2S)

2″, 3″, 4″, CWP 15000 Psi, Figure 1502, Standard Service / Sour Gas (H2S)

2″, 3″, 4″, CWP 20000 Psi, Figure 2202, Standard Service / Sour Gas (H2S)

Cold Working Pressure (psi) 6000~20000
Nominal Size (inch) 2″; 3″; 4″
End Connection Fig 602; Fig 1002; Fig 1502; Fig 2202 or Line Pipe Thread
Style 10, 20, 30, 40, 50, 60, 70, 80, 100
Type Long radius, short radius
Sour Gas Service is also available
