Plug valve repair kits
FMC plug valve repair kits and SPM repair kits.
Size ranging from 1”x2”~4”.
All are 100% compatible with original plug valve suppliers.

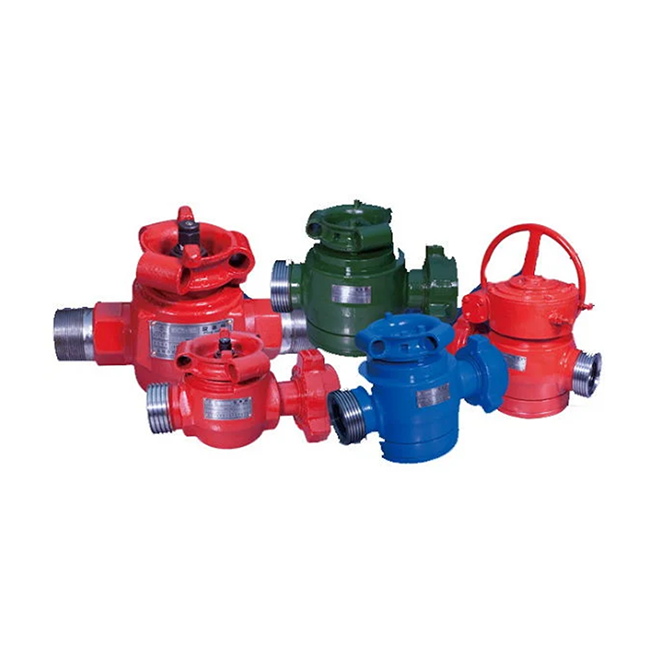

2″ Fig 1502 FMC Plug Valve Repair Kit and Spare Parts For Setting Tools
Description
2″ Fig 1502 FMC Plug Valve Repair Kit and Spare Parts For Setting Tools
Plug valve repair kits
FMC plug valve repair kits and SPM repair kits.
Size ranging from 1”x2”~4”.
All are 100% compatible with original plug valve suppliers.
All are 100% compatible with original plug valve suppliers.
| No. | Name | Qty | No. | Name | Qty | |
|---|---|---|---|---|---|---|
| 1 | Valve body | 1 | 12 | Square sealing ring | 2 | |
| 2 | Sealing washer | 1 | 13 | Sealing arcing shim | 2 | |
| 3 | Spring rand | 1 | 14 | Plug cock | 1 | |
| 4 | Wing union | 1 | 15 | Valve deck sealing ring | 1 | |
| 5 | Rand | 3 | 16 | Support band of valve deck sealing ring | 1 | |
| 6 | Retaining spring | 1 | 17 | Elastic cylindrical pin | 1 | |
| 7 | Retaining pin | 2 | 18 | Valve deck | 1 | |
| 8 | Locating pin | 2 | 19 | Plug cock cap | 1 | |
| 9 | O-shaped sealing ring | 2 | 20 | Locknut | 1 | |
| 10 | Sealing ring support band | 2 | 21 | Grease fitting | 1 | |
| 11 | Side arcing shim | 2 |
