Description

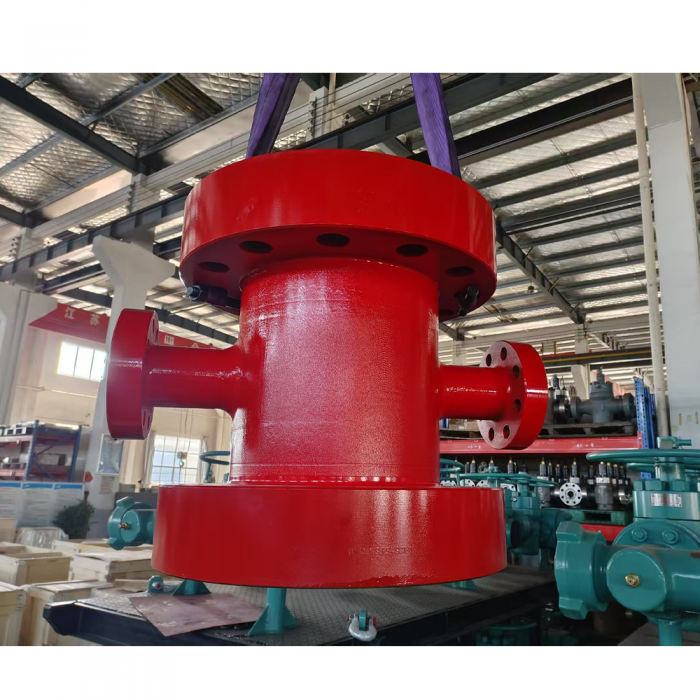

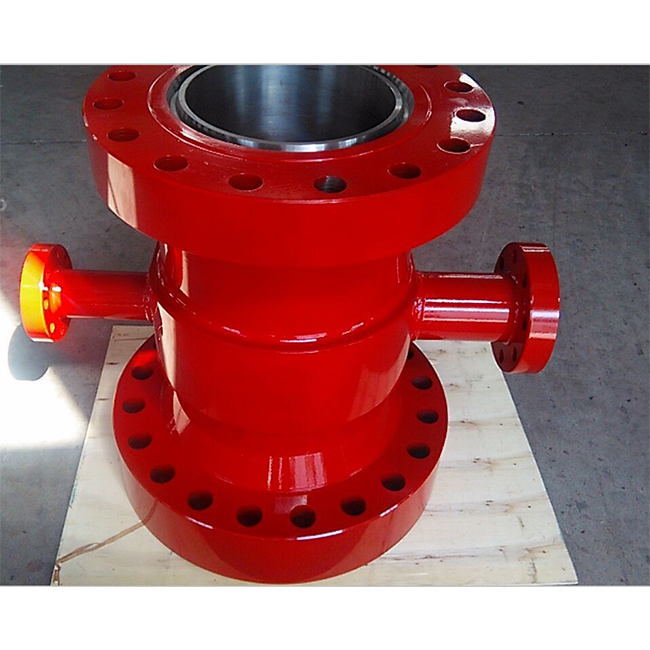

Drilling Spool are the parts of well control equipment, which are often used in the oilfield when drilling, Drilling spools are designed to allow safe circulation of mud. The drilling spools that are in line with API specification 16A. Drilling spools allow the smooth circulation of mud during drilling operations and usually have the same nominal top and bottom end connections. Side outlet may differ from each other.
The drilling spool is made of alloy steel and heat-treated. It is used on the oil and gas well which is with a pressure of less than 105Mpa. The drilling spool applies to drilling high pressure oil and gas well, the connecting of the by passage of the spool with the valves and pipes will play not only a role of blowout and choking , but also a role of connecting the BOP with the wellhead.
Description H (mm) H1 (mm) L (mm)
7 1/16″ X 5M To 7 1/16″ X 5M With side outlet 3 1/8″ X 5M To 3 1/8″ X 5M 660 330 408
11″ X 15M To 11″ X 15M With side outlet 3 1/16″ X 15M To 3 1/16″ X 15M 1100 550 450
13 5/8″ X 5M To 13 5/8″ X 5M With side outlet 2 1/16″ X 5M To 2 1/16″ X 5M 1524 305 565
13 5/8″ X 5M To 13 5/8″ X 5M With side outlet 3 1/8″ X 5M To 3 1/8″ X 5M 700 350 468
13 5/8″ X 5M To 13 5/8″ X 5M With side outlet 4 1/16″ X 5M To 4 1/16″ X 5M 700 350 484
13 5/8″ X 10M To 13 5/8″ X 10M With side outlet 4 1/16″ X 10M To 4 1/16″ X 10M 980 490 550
20 3/4″ X 3M To 20 3/4” X 3M With side outlet 4 1/16″ X 5M To 2 1/16″ X 5M 636 318 660
20 3/4″ X 3M To 21 1/4″ X 2M With side outlet 3 1/16″ X 10M To 3 1/16″ X 10M 2500 800 590
21 1/4″ X 2M To 21 1/4″ X 2M With side outlet 4 1/16″ X 5M To 4 1/16″ X 5M 700 350 575
21 1/4″ X 2M To 20 3/4″ X 3M With side outlet 4 1/16″ X 10M To 4 1/16″ X 10M 750 375 582
