Mud Cleaner

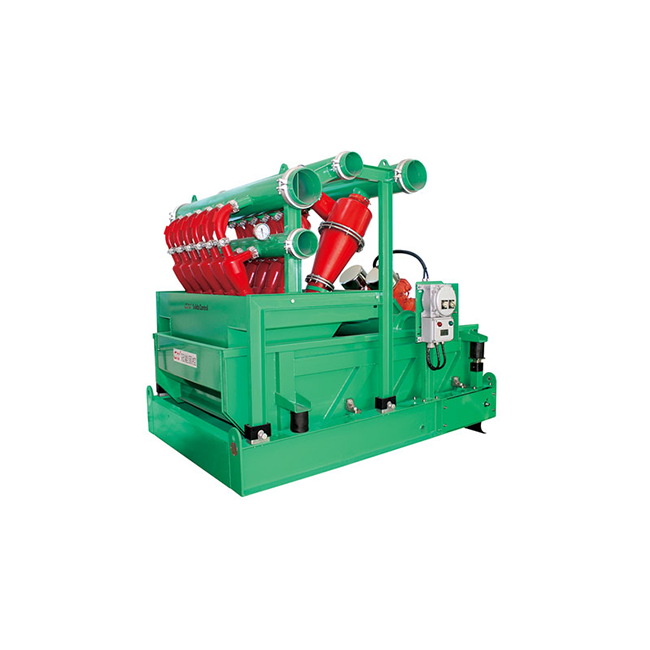

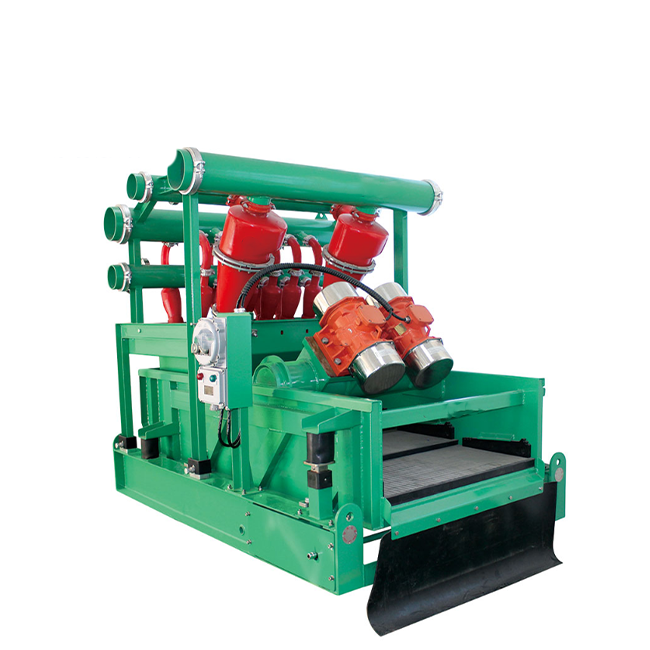

Mud Cleaner is the second stage and the third stage solids control equipment which is a combination of Desander, Desilter and underflow shale shaker. Comparing with traditional separate Desander and Desilter, the mud cleaner has a higher cleaning function. The Underflow Screen equals another shale shaker which receives the waste out from the cyclone nozzle for additional processing. So that mud cleaner could recover more valuable drilling mud. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud.

  • Desander & Desilter & Shale Shaker 3 in one unit mud cleaner for compact footprint.
  • Polyurethane Material hydrocyclone for long life.
  • Removable hydrocyclone assembly from mud cleaner skid for adjust to be a shale shaker.
  • Patent electric shaker deck angle adjustable while working, mechanical deck angle adjustment for backup application.
Model ZJ703J-D1S8NJ ZJ703J-S2S12NJ ZJ594J-S2S12NJ ZJ703J-S3S16NJ ZJ594J-S3S16NJ
Capacity(m³/h) 120(528GPM) 240(1056GPM) 360(1584GPM)
Desander Size(Inch) 10
Desander Qty(PCS) 1 2 3
Desilter Size(Inch) 4
Desilter Qty(PCS) 8 12 16
Working Pressure(Mpa) 0.25 ~ 0.4
InletSize(Inch) 6
Outlet Size(Inch) 8
Bottom Shaker Specs. Shaker Model GNZS703J GNZS594J GNZS703J GNZS594J
Vibration Mode Linear Motion
Motor(Kw) 2×1.72
Screen Qty(Pcs) 3 4 3 4
Screen Size(mm) 700×1250 585×1165 700×1250 585×1165
Screen Area( m²) 2.63 2.73 2.63 2.73
Adjust G Force ≤7.5G
Vibration Amplitude(mm) 4.14 ~ 5.96
Deck AngleRange -1 ~ +5°
EX Standard ExdIIBT4/IECEX/ATEX
Weight(Kg) 1930 2235 2285 2328 2378
Dimension: L×W×H(mm) 2462×2042×1848 2462×2042×2147 2707×2042×2147 2462×2042×2147 2707×2042×2147
The above specification and parameters for reference only.
