Description

Desilter

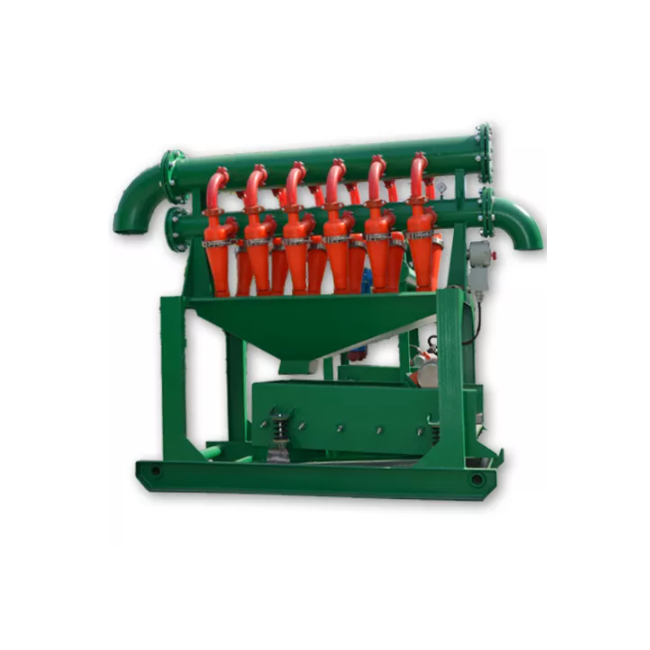

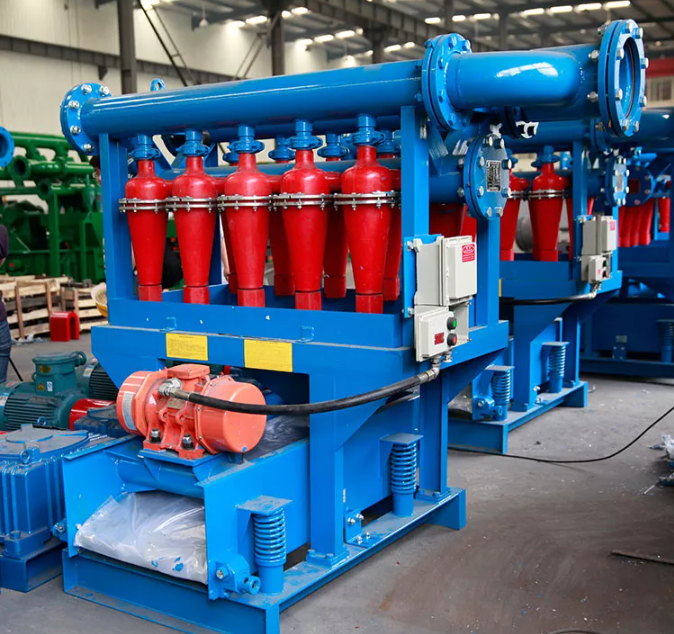

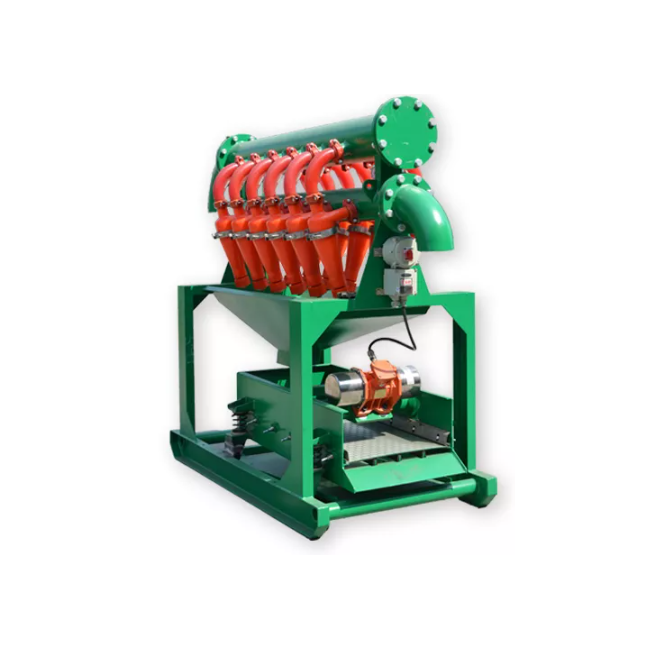

The desilter with underflow shaker is also called mini cleaner which is applicable for both weighted and unweighted drilling mud, while traditional desander no underflow vibrating screen only for unweighted drilling fluids. And comparing with large size desander and desilter assembly, the Mini Desander is cost-effective. For compact mud system used in HDD, CBM, water well drilling and mining project, Mini desilter cleaner is an Ideal choice.

  • Desilter Options with shaker and without shaker for flexible application.
  • Desilter cones with PU material with better Abrasion resistance.
  • No under shaker design structure compact and assembly flexible.
  • Mini desilter cleaner with shaker for both weighted / unweighted mud in various drilling.
Model Z200-D528/1056 Z528-D1584
Capacity 120m3/h(528GPM) / 240m3/h(1056GPM) 360m3/h(1584GPM)
Desilter Size 4 Inch
Desilter Qty 8/12pcs 16pcs
Working Pressure 0.25~0.4Mpa
Feeding Size 6 Inch
Output Size 8 Inch
Bottom Shale Shaker Specs
Shaker Model Z200 Z528
Vibration Mode Linear Motion
Vibration Motor 2×0.75Kw 2×1.72Kw
Angle Adjust Motor N/A 0.55Kw
Screen Qty 2pcs 3pcs
Screen Size: L×W 750×900mm 700×1250mm
Screen Area 1.35m2 2.63m2
Adjust G Force ≤7.1G ≤7.5G
Vibration Amplitude 3.92~5.62 4.14~5.96
Deck Angle Range +2° -1°~+5° (Electric & Mechanical)
EX Standard ExdIIBt4 / IEC EX/ ATEX
Weight (Kg) 1057 2016
Dimension (mm) 1674×1707×1719 2419×2113×2126
