Description

Coiled Tubing Bop

Coiled tubing BOP is the key components for well control device, used in coiled tubing operation, effectively prevent the blowout accident, implement safety construction. Is mainly composed of the following two parts:

Coiled tubing operation BOP stack
The BOP box adopts the side door type, simple and convenient replacing rubber core, even the coiled tubing is in operation, and rubber core can be replaced.
With double cylinder structure, the use of pressure to seal and reliable sealing, long service life and control low pressure.
Original created side door lock structure, easy to use, stable performance.

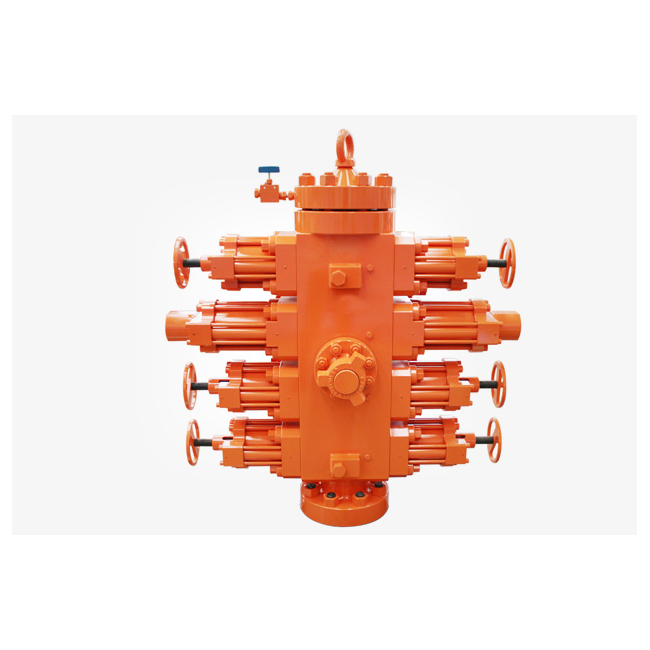

Four Ram coiled tubing BOP
BOP with full sealing ram, shear ram, slip ram and half seal ram.
Slip ram using removable structure design, the unique design of tooth to reduce the harm of coiled tubing.
Switch oil interface for fast plug connector, easy to operate, and it is equipped with protection, safe and reliable

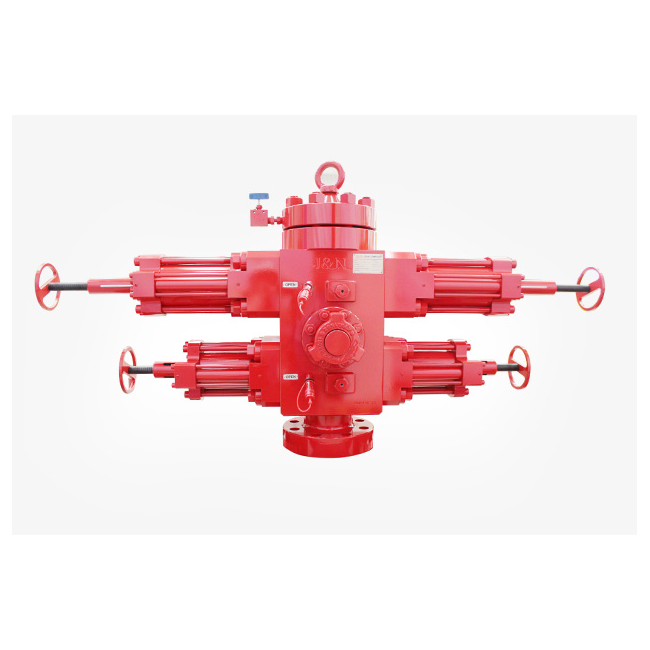

Combi BOP

  • Ram open/ close and replacement adopt the same internal hydraulic passage, easy and safe to operate.
  • Combi ram including shear-blind ram and pipe-slip ram feature simple operation and easy maintenance.
  • Ram position indicator rod is designed to indicate ram position during operation.
  • Open/close sign on the handwheel is easy to identify.
Model Main Bore Rated Pressure (psi) Max. Hydraulic Pressure (psi) Tubing Size Weight (lbs) Dimensions
3 1/16″-10K 3 1/16″ 10,000 3,000 1″- 2″ 1,918 58.50″×19.10″×28.68″
4 1/16″-10K 4 1/16″ 10,000 3,000 1″-2 3/8″ 2,416 77.15″×18.18″×32.24″
4 1/16″-15K 4 1/16″ 15,000 3,000 1″-2 3/8″ 2,520 77.15″×19.05″×32.89″

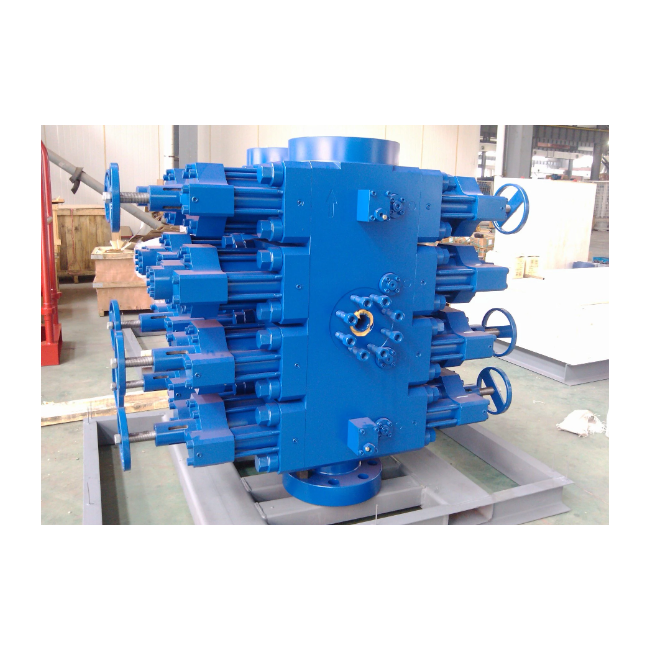

Coiled Tubing Quad BOP (internal hydraulic passage)

  • Ram open/ close and replacement adopt the same internal hydraulic passage, easy and safe to operate.
  • Ram running indicator rod is designed to indicate ram position during operation.
  • Innovative shear actuator eliminates the impact of wellbore pressure on shearing process.
  • Multicouplings allow fast and accurate engagement and disengagement of hydraulic control lines.
    Model Main Bore Rated Pressure (psi) Max. Hydraulic Pressure (psi) Tubing Size Weight (lbs) Dimensions
    2 9/16″-10K 2 9/16″ 10,000 3,000 1″-1 1/2″ 1,500 61.33″×16.00″×33.33″
    3 1/16″-10K 3 1/16″ 10,000 3,000 1″-2″ 2,006 61.30″×16.50″×37.13″
    4 1/16″-10K 4 1/16″ 10,000 3,000 1″-2 5/8″ 3,358 51.64″×19.38″×45.71″
    4 1/16″-15K 4 1/16″ 15,000 3,000 1″-2 5/8″ 3,309 51.64″×19.99″×46.29″
    4 1/16″-20K 4 1/16″ 20,000 3,000 1″-2 7/8″ 8,452 74.82″×27.10″×86.10″
    5 1/8″-10K 5 1/8″ 10,000 3,000 1″-2 7/8″ 7,213 66.07″×22.50″×58.00″
    5 1/8″-15K 5 1/8″ 15,000 3,000 1″-2 7/8″ 8,615 65.24″×22.23″×63.50″

    Coiled Tubing Quad BOP (External hydraulic passage)

Model Main Bore Rated Pressure (psi) Max. Hydraulic Pressure (psi) Tubing Size Weight (lbs) Dimensions
3 1/16″-10K 3 1/16″ 10,000 3,000 1″-2″ 1,260 33.96″×16.11″×31.25″
4 1/16″-10K 4 1/16″ 10,000 3,000 1″-2 5/8″ 4,750 64.65″×19.80″×46.25″
