Description

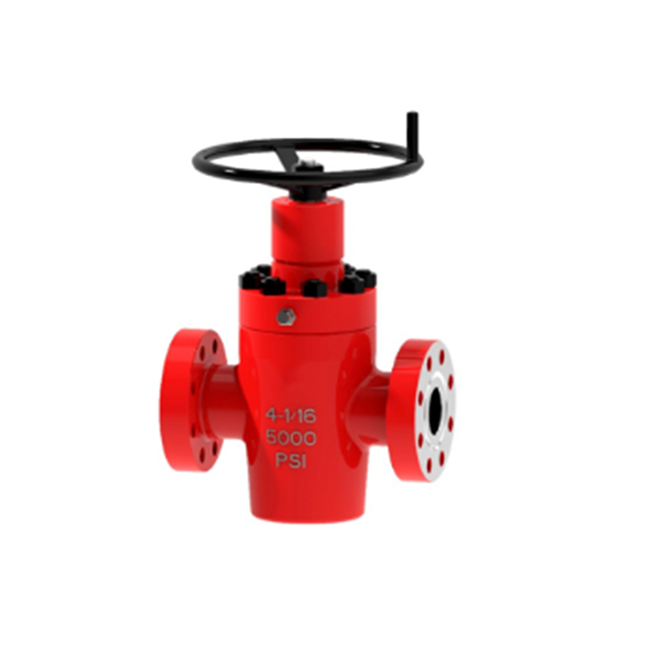

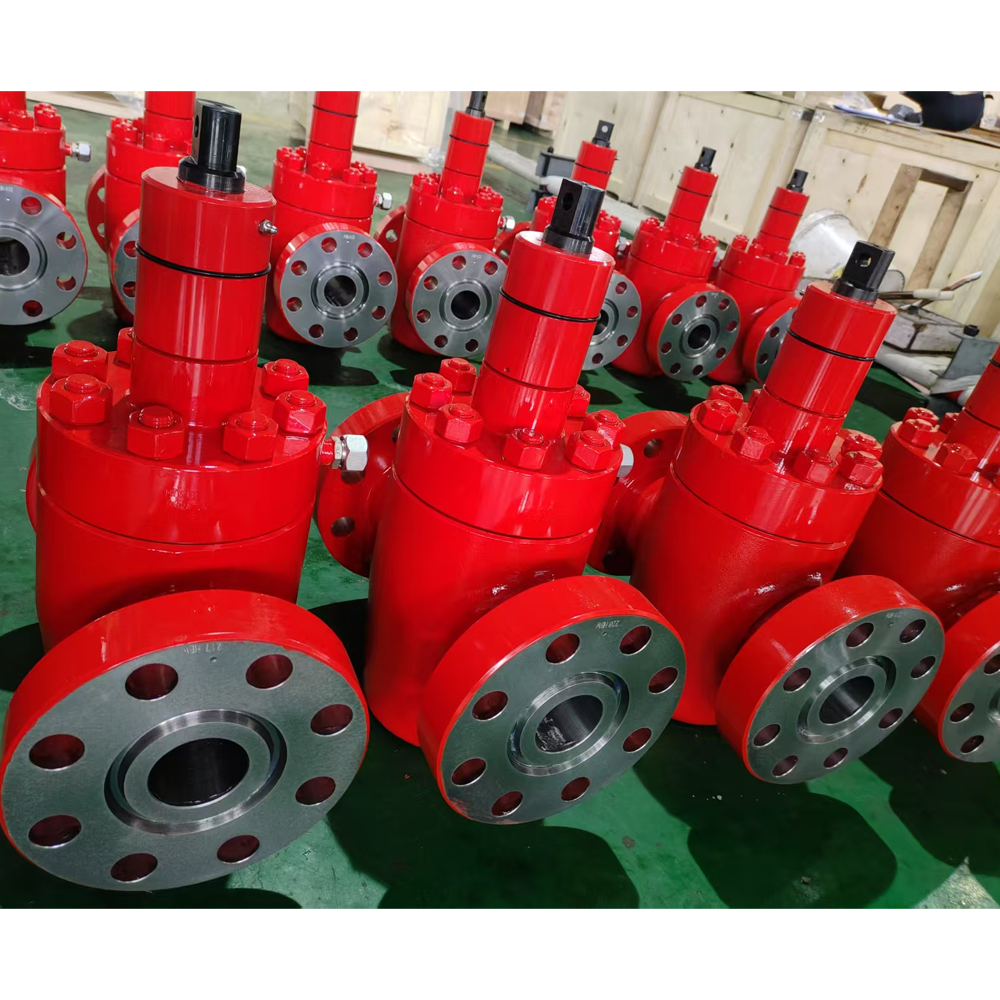

CAMTOP API 6A valves provide highest level of quality and value to oil and gas application. These valves have optimized flow path and proper selection of trim style and material for longer life, proper performance and function. The single piece slab gate is field-replaceable and provides the valve with full bidirectional sealing capability at both high and low pressures. Slab Gate Valves are designed for oil and natural gas wellhead, manifold or other critical service applications with operating pressures from 3,000 to 10,000 psi. these valves are offered in all API temperature classes and product specification levels PSL 1 through 4.

3000 PSI API 6A gate valve PR1 PR2 feature:
◆ Forging valve body and bonnet
◆ Small operating torque
◆ Double metal sealing for valve body and bonnet
◆ For any positional gate, it is metal to metal rear seat sealing.
◆ Lubricating nipple for easy maintenance.
◆ Guide of valve disc to assures lubrication of valve body and protection of valve disc surface.
◆ Flanged connection
◆ Manual or Hydraulic operation.
◆ The user-friendly design makes operation an easy job and max saves the cost.

Bore Size 1-13/16“ to 13-5/8”
Working Pressure 2,000psi, 3,000psi, 5,000Psi, 10,000psi, 15,000psi, 20,000psi
Temp. Class P-U, L-U, U, K-U, P-X
Material Class AA, BB, CC, DD, EE, FF, HH
PSL PSL1, PSL2, PSL3, PSL3G, PSL4
PR PR1, PR2
Service Standard Service, Sour Service
Standard API 6A, ISO 9001
