CAMTOP M Series Sucker Rod Tong
Multi-Purpose Hydraulic Power Rod Tong for Oilfield Operations
Engineered for efficient sucker rod and macaroni tubing make-up & break-out operations. Compact, high-reliability design with 4 power models from 1,600 N.m to 3,500 N.m rated torque. Single-operator operation with advanced torque sensor system and automatic safety gates.
1,181 – 2,583 ft.lbs
1/2″ – 1-1/8″ Sucker Rod
Hydraulic Power
370 lbs (168 kg)
Product Overview

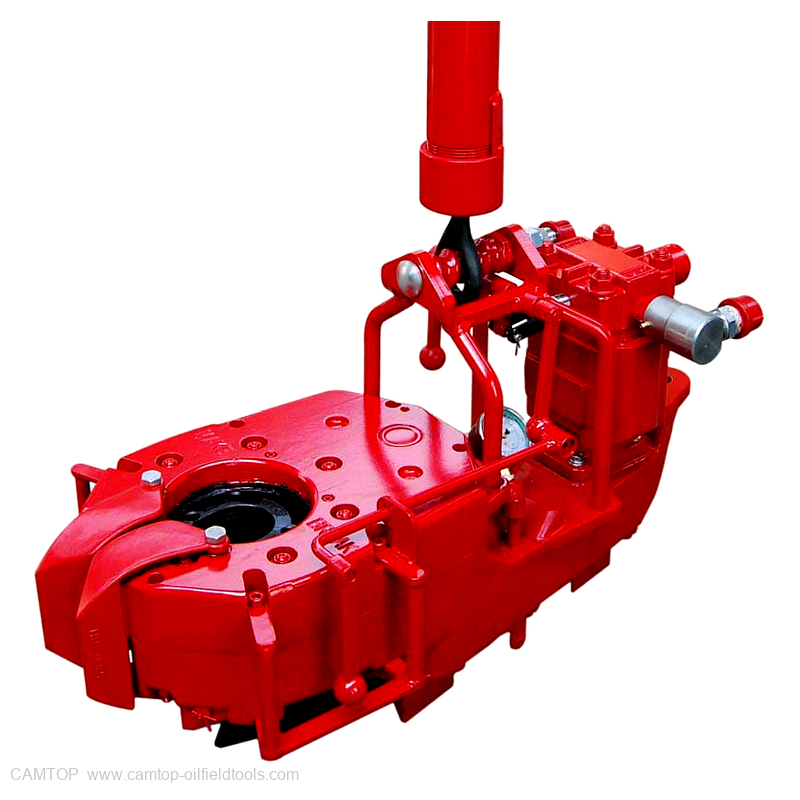

The CAMTOP M Series Sucker Rod Tong is a new-generation multi-purpose sucker rod hydraulic power tong that incorporates advanced technology for oilfield rod handling operations. Designed for make-up and break-out of sucker rods and small-diameter macaroni tubing, this powerful yet compact tool delivers exceptional performance in workover and well servicing applications.
The M Series features a specially designed clamping mechanism for fast and safe operation, a single master control that handles both speed and direction of rotation, and a tandem control design allowing operation from the front or either side. An advanced torque sensor system provides real-time torque value display during make-up, ensuring precise joint preload according to API specifications.
With a standard unitized jaw assembly compatible with multiple rod sizes, automatic safety-gate protection, and quick conversion capability for macaroni tubing, the CAMTOP M Series is the ideal choice for modern oilfield workover rigs requiring reliability, safety, and operational efficiency.
Technical Specifications
| Parameter | M/1.6 (M20) | M/2 (M40) | M/2.5 (M50) | M/3.5 (M75) |
|---|---|---|---|---|
| Rated Torque | 1,600 N.m 1,181 ft.lbs |
2,000 N.m 1,476 ft.lbs |
2,500 N.m 1,845 ft.lbs |
3,500 N.m 2,583 ft.lbs |
| Maximum Speed | 135 rpm | 110 rpm | 85 rpm | 65 rpm |
| Rated Working Pressure | 6.9 – 13.1 MPa (1,000 – 1,900 psi) | |||
| System Oil Supply | 76 – 114 L/min (20 – 30 gpm) | |||
| Sucker Rod Range | 1/2″ (CYG12.7), 5/8″ (CYG16), 3/4″ (CYG19), 7/8″ (CYG22), 1″ (CYG25), 1-1/8″ (CYG29) | |||
| Tubing Range | 26 mm (1.050″), 33 mm (1.315″), 42 mm (1.660″), 48 mm (1.900″) | |||
| Overall Dimensions (L x W x H) | 851 x 381 x 457 mm (33.5″ x 15″ x 18″) | |||
| Total Weight | 168 kg (370 lbs) | |||
Torque – System Pressure Correlation
The table below shows the correlation between system pressure and output torque for all four models. Use this reference when calibrating make-up and break-out torque settings.
| Pressure | 5 MPa (725 psi) |
6 MPa (870 psi) |
7 MPa (1015 psi) |
8 MPa (1160 psi) |
9 MPa (1305 psi) |
10 MPa (1450 psi) |
11 MPa (1595 psi) |
12 MPa (1740 psi) |
13 MPa (1885 psi) |
|---|---|---|---|---|---|---|---|---|---|
| M20 Torque (ft.lbs) |
605 | 679 | 745 | 819 | 893 | 959 | 1,033 | 1,107 | 1,181 |
| M40 Torque (ft.lbs) |
657 | 752 | 856 | 959 | 1,063 | 1,166 | 1,269 | 1,373 | 1,476 |
| M50 Torque (ft.lbs) |
960 | 1,070 | 1,181 | 1,291 | 1,402 | 1,513 | 1,624 | 1,734 | 1,845 |
| M75 Torque (ft.lbs) |
1,040 | 1,232 | 1,424 | 1,616 | 1,808 | 2,000 | 2,192 | 2,384 | 2,583 |
Key Features & Advantages
1. Optimized Clamping Mechanism
Specially designed clamping mechanism enables fast and safe make-up or break-out of sucker rods and tubing across different sizes with minimal jaw change requirements.
2. Single Master Control
A single master control handles both speed and direction of rotation. Tandem control design allows operation from front or either side for maximum operator convenience.
3. Advanced Torque Sensor System
Real-time torque value display during make-up operations ensures accurate joint preload according to API specifications, preventing over-torquing or under-torquing of connections.
4. Automatic Safety-Gate System
Equipped with automatic swing-door safety gates that open and close when the tong swings on or off the rod string, providing essential operator protection during operations.
5. Unitized Jaw Assembly
Single unitized jaw assembly fits 5/8″, 3/4″ and 7/8″ rod sizes without change. Quick jaw change adapts the tong to 1/2″, 1″ and 1-1/8″ rod sizes in seconds.
6. Macaroni Tubing Conversion
The rod tong can be converted for macaroni tubing of 1.050″-1.900″ diameter by replacing the rotating jaw assembly with special macaroni tubing jaws.
7. Balanced Suspension System
Equipped with a level adjustment screw at the top of the hanger and spring suspension that allows vertical movement while the joint is being made up or broken out.
8. Compact & Lightweight Design
With overall dimensions of 33.5″x15″x18″ and weighing only 370 lbs, the M is easy to handle by a single operator and ideal for tight rig floor spaces.
Operating Principle
The CAMTOP M Series Sucker Rod Tong operates on a hydraulic power system driving a hydraulic motor through a manual reversing valve with self-sealing couplings. The operator controls both speed and direction of rotation through the tandem throttle handle to complete make-up and break-out operations.
Make-Up Operation
- Position the tong with the back-up wrench lined up with the rod’s bottom square
- Guide the tong onto the rod so the back-up wrench slides onto the bottom square
- Jaws in the inner ring automatically position to the top square of the rod
- Operate the tandem throttle to rotate the inner ring clockwise (MAKE side up)
- Monitor the torque gauge to achieve the desired preload value
- The torsion is transferred through the back-up wrench to the torque sensor system for real-time display
Break-Out Operation
- Flip the inner ring so the BREAK side is on top
- Rotate the outer ring half way to align the brake drum
- Position tong on the rod and operate throttle to rotate counter-clockwise
- Set relief valve high enough to break the rods, but not exceeding 14 MPa (2,000 psi)
Sucker Rod Joint Circumferential Displacement Values
For optimum performance, sucker rod pin and coupling joints must achieve the desired preload. The table below provides recommended circumferential displacement values for three field conditions per API guidelines.
| Rod Size | New String API Grade D Rods |
New String API Grade C & K Rods |
Subsequent Installation All API Grades |
|---|---|---|---|
| 1/2″ | 4.8 mm (6/32″) | 3.2 mm (4/32″) | 3.2 mm (4/32″) |
| 5/8″ | 6.3 mm (8/32″) | 4.8 mm (6/32″) | 4.8 mm (6/32″) |
| 3/4″ | 7.1 mm (9/32″) | 5.6 mm (7/32″) | 5.6 mm (7/32″) |
| 7/8″ | 8.7 mm (11/32″) | 7.1 mm (9/32″) | 7.1 mm (9/32″) |
| 1″ | 11.1 mm (14/32″) | 9.5 mm (12/32″) | 9.5 mm (12/32″) |
| 1-1/8″ | 14.3 mm (18/32″) | 12.7 mm (16/32″) | 12.7 mm (16/32″) |
Installation Guide
1. Hanging
Connect one end of the hanger to the hanging rod, and the other end to a 9/16″ wire rope hung on the derrick approximately 15 m (50 ft) above the rig. Center-to-well distance should be about 0.5 m (20″) in free condition.
2. Balance Adjustment
With the tong on the rod, adjust the leveling screw at the top of the hanger so the tong hangs perfectly level. Adjust height so jaws align with the top square of the rods.
3. Back Guy (Stiff Arm)
Tie one end to the derrick and the other to the back of the rod tong. Position opposite to the operator at right angle. Must bear 200 kg (440 lbs) load to protect operator safety.
4. Inner Ring Selection
Choose the relevant inner ring according to rod specification. MAKE side faces up for make-up, BREAK side faces up for break-out. Indexing knob prevents incorrect installation.
5. Back-Up Wrench
One back-up wrench fits both 3/4″ and 7/8″ rods. Install so the load cell piston protrudes at least 3/8″ to hold the wrench away from the case.
6. Hose Connection
Connect rig power source to rod tong with hoses (excess 1″). Verify self-sealing couplings are engaged and system is not blocked. Circulate oil 5-10 minutes to warm up.
Maintenance Guide
| No. | Task | Procedure |
|---|---|---|
| 1 | Post-Use Cleaning | Rinse the rod tong, inner ring, and back-up wrench connections with kerosene or diesel oil. Tighten loose pins on throttle control linkage. |
| 2 | Inner Ring Inspection | Remove inner ring and check both outer ring rollers and inner ring jaws for wear or breakdown. |
| 3 | Outer Ring Roller Check | With inner ring removed, rotate outer ring and check all fourteen frame rollers for wear. |
| 4 | Torque Gauge Check | Check the torque gauge by prying against one side of the back-up wrench. Test periodically and recalibrate every 1,000 ft of rod installation. |
| 5 | Gate Spring Tension | Test spring tension on gate doors with tong upright. Adjust gate spring capscrew for even tension on both gates. |
| 6 | Lubrication | All bearings are grease-packed and sealed. Jaw pins, wear rings, outer ring gear and idler gears receive sufficient lubrication from the rods. If not, apply oil or brush grease on these points. |
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Tong Out of Time | Brake drum not aligned with frame opening, preventing correct inner ring installation | Use 2″x4″ wood piece or two punches in brake drum pin holes to pry drum into alignment with frame opening |
| Torque Indicator Malfunction | Low oil in torque indicator closed system; load cell piston won’t hold wrench away from case | Turn tong on side, remove fill plug, push piston back, add hydraulic oil. Bleed air by loosening gauge. Repeat 2-3 times if needed. |
| Jumping Out of Time | Loose brake cover plate or worn brake drum pins | Tighten cover plate. Turn pins end-for-end and drive back, or replace. Pins should extend 1/2″ above brake drum. |
| Jaws Fail to Actuate | Worn brake band, ring out of position, worn/deformed brake drum or jaws | Replace brake band. Check ring position and brake drum alignment. Replace worn components as needed. |
| Oil Leaking from Motor | Worn or blown motor shaft seal | Remove motor from tong and replace the shaft seal. A weep hole is provided to prevent case flooding. |
Frequently Asked Questions
Q1: What sucker rod sizes can the CAMTOP M Series handle?
The M Series handles sucker rods from 1/2″ (CYG12.7) to 1-1/8″ (CYG29). The standard unitized jaw assembly fits 5/8″, 3/4″ and 7/8″ rod sizes without any jaw change. Quick jaw changes adapt the tong to 1/2″, 1″ and 1-1/8″ rod sizes. The tong can also be converted for macaroni tubing from 1.050″ to 1.900″ diameter with special jaws.
Q2: How do I choose between the four models (M20, M40, M50, M75)?
Model selection depends on required torque and operating speed. The M20 provides 1,181 ft.lbs at 135 rpm — ideal for lighter duty. The M40 offers 1,476 ft.lbs at 110 rpm. The M50 delivers 1,845 ft.lbs at 85 rpm. The M75 provides maximum torque of 2,583 ft.lbs at 65 rpm for heavy-duty applications and larger rod sizes. All models share the same hydraulic circuit design and overall dimensions.
Q3: What is the required hydraulic power source for this tong?
The M Series requires a hydraulic power system delivering 20-30 gpm (76-114 L/min) at 1,000-1,900 psi (6.9-13.1 MPa). This can be a hydraulic station or trailer power unit on a well-service rig. Connect using hoses with self-sealing couplings. Always circulate oil for 5-10 minutes to warm up the system before full operation.
Q4: How do I calibrate the tong for correct make-up torque?
Calibration uses the circumferential displacement method per API specifications: (1) Screw joint hand-tight and scribe reference line, (2) Make up slowly with tong at full throttle, (3) Measure displacement of scribed line, (4) Adjust operating pressure to achieve the recommended value from the displacement table. Check calibration for minimum 4 joints on first use, and every 1,000 feet thereafter for each rod size change.
Q5: What safety features does the M rod tong have?
The M incorporates multiple safety features: (1) Automatic swing-door safety gates that open/close with rod contact, acting as guards around rotating jaws, (2) Back guy (stiff arm) connection for 200 kg load capacity, (3) Tandem control allowing operation from the safest position, (4) Spring suspension allowing safe vertical movement, (5) Weep hole preventing hydraulic oil case flooding. Operators should keep hands away from rotating jaw areas during operation.
Q6: What is the warranty and after-service policy?
CAMTOP provides a 6-month warranty covering material and manufacturing defects under normal operating conditions. The warranty covers free repair or replacement of defective products or service facilities. Wear parts such as dies, rollers, brake band assemblies, and surface coatings are excluded. CAMTOP shall not be responsible for indirect damages. Contact us immediately if quality problems are detected so they can be confirmed and corrected promptly.
