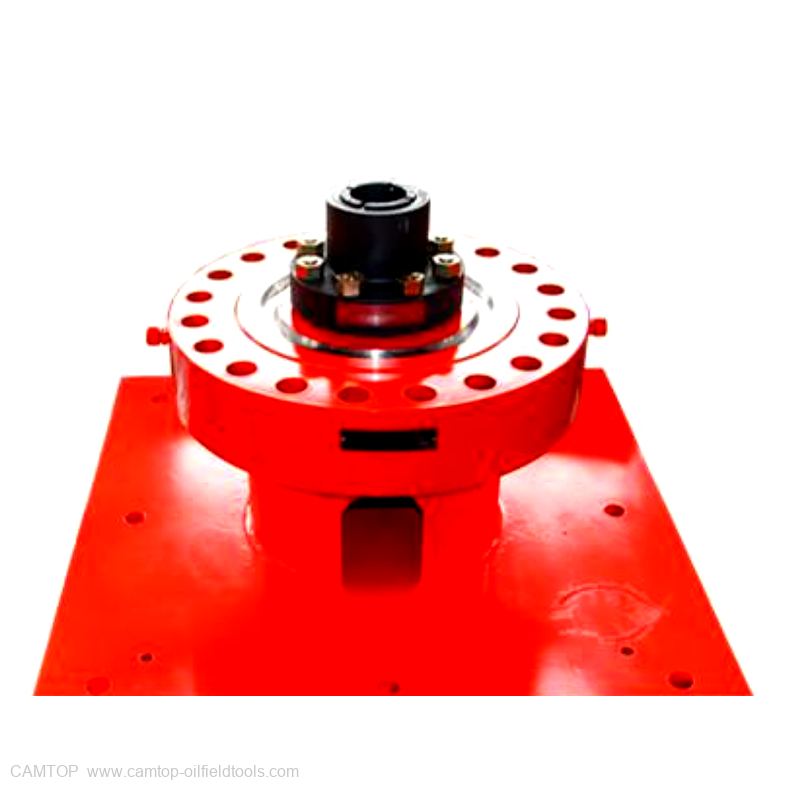

CAMTOP BOP Test Stump
Blowout Preventer Pressure Testing Equipment – API 6A & API 16A
CAMTOP BOP Test Stumps are purpose-built pressure testing tools for blowout preventer (BOP) verification. Features base plates, side and bottom ports, and fixed or removable test mandrel retaining threads. Custom design requirements accommodated for manufacturer test facilities and field drilling operations.
2,000 – 15,000 psi
7-1/16″ – 21-1/4″
API 6A & API 16A
Product Overview
The CAMTOP BOP Test Stump includes base plates, side and bottom ports, and fixed or removable test mandrel retaining threads. We offer a wide variety of test flanges and BOP test stumps suitable for manufacturers test facilities or drillers testing operations. Test flanges and BOP test stumps usually incorporate customer-specified design requirements to meet specific operational needs.
Technical Specifications
| Parameter | Available Specification |
|---|---|
| Service | Oil, Gas, H2S Service |
| Bore Size | 7-1/16″, 11″, 13-5/8″, 18-3/4″, 21-1/4″ |
| Working Pressure | 2,000 – 15,000 PSI |
| Working Temperature | P – U |
| Material Class | AA – EE |
| Test Mandrel Threads | Fixed or Removable |
| Design Code | API 6A & API 16A |
| Sour Service | NACE MR-01-75 |
Key Features
1. API 6A & API 16A Compliant
Designed and manufactured in strict accordance with API 6A and API 16A specifications. NACE MR-01-75 compliant for sour service applications containing H2S.
2. Custom Engineering
Each test stump incorporates customer-specified design requirements. Base plates, side ports, bottom ports, and mandrel threads can be customized to your BOP stack configuration.
3. Fixed or Removable Mandrel
Choose fixed test mandrels for dedicated use or removable mandrels that allow swapping between connection types, maximizing testing flexibility.
4. Full Traceability
Complete documentation package: raw material test certificates, NDT reports, pressure test reports, general assembly drawings, and technical service manual – all provided in English.
5. Third-Party Inspection
Factory inspection and on-site inspection available. Any type of third-party inspection is acceptable. Warranty starts after passing on-site inspection.
6. ISO 9001 Manufacturing
All equipment manufactured according to ISO 9001 quality management system. 18-month warranty after receiving goods or 12 months after operation.
Quality Assurance & Warranty
| No. | Item | Details |
|---|---|---|
| 1 | Inspection | Factory inspection and on-site inspection conforming to agreed protocol and manufacturing standards. Third-party inspection accepted. |
| 2 | Quality Certificate | ISO 9001 certified manufacturing; API 6A and API 16A compliant design. Full documentation provided. |
| 3 | Warranty | 18 months after receiving goods or 12 months after operation. Quality problems resolved free of charge. |
| 4 | Documentation | Traceability docs (raw material cert, NDT report, pressure test report), assembly drawing, service manual in English. |
| 5 | Design Improvement | Free equipment improvement if failure or safety hazard appears due to design defect during operation. |
Frequently Asked Questions
Q: What is a BOP test stump used for?
A BOP test stump provides a sealed base with test mandrel connections for pressure-testing blowout preventers at manufacturer facilities or on the rig floor, verifying BOP stack integrity before operation.
Q: What BOP sizes do CAMTOP test stumps support?
Standard bore sizes: 7-1/16″, 11″, 13-5/8″, 18-3/4″, and 21-1/4″. Pressure ratings from 2,000 to 15,000 psi. Custom sizes available for non-standard BOP configurations.
Q: Can test mandrels be removed and swapped?
Yes, both fixed and removable test mandrel options are available. Removable mandrels allow swapping between different connection types, enabling one test stump to serve multiple BOP configurations.
Q: What documentation is provided with each test stump?
Full traceability package: raw material test certificates, NDT reports, pressure test reports, general assembly drawings, and comprehensive technical service manual – all in English.
Q: Is third-party inspection accepted?
Yes, any third-party inspection is acceptable. Both factory and on-site inspection are provided. Warranty begins after the product passes on-site inspection.
Order CAMTOP BOP Test Stump
Specify bore size, working pressure, material class, mandrel type, and any custom design requirements.
