CAMTOP RX 36000 Reset Relief Valve is a spring-loaded safety valve designed for mud pump and drilling manifold systems. Featuring a 3 inch 1502 flange connection and BX154 ring groove, it provides reliable overpressure protection with manual reset capability. Suitable for high-pressure oilfield applications, with full drawing support and available spare parts.

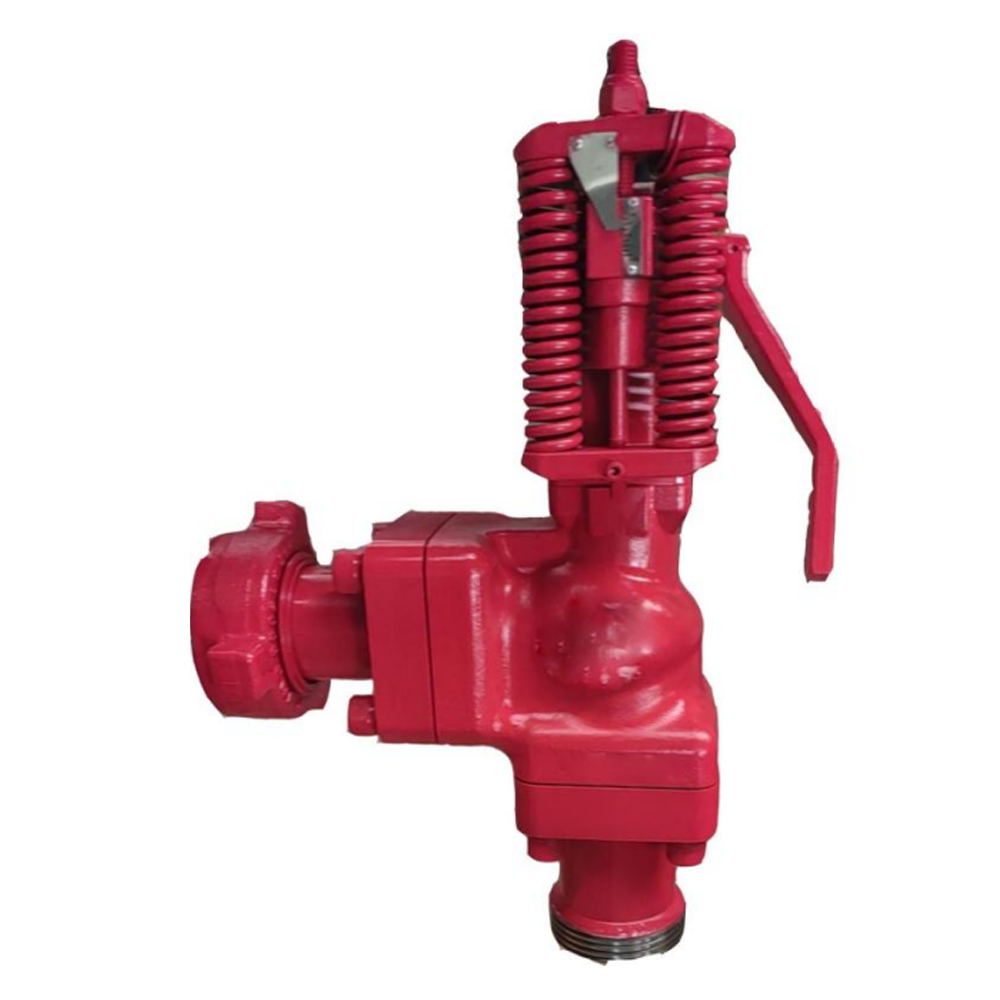

RX 36000 Reset Relief Valve 3 Inch 1502 BX154 5000 PSI
Description
Product Description
The CAMTOP RX 36000 Reset Relief Valve is designed for mud pump and drilling manifold systems. It provides reliable overpressure protection with spring-loaded reset mechanism and allows manual reset without stopping operation.
Technical Specifications
| Product | RX 36000 Reset Relief Valve |
| Size | 3 Inch |
| Pressure | 5000 PSI |
| Flange | 3 1/16" - 10000 PSI |
| Ring Groove | BX154 |
| Length | 23.5 inch |
| Height | 8.75 inch |
| Bore | 2.62 inch |
| Material | Stainless Steel |

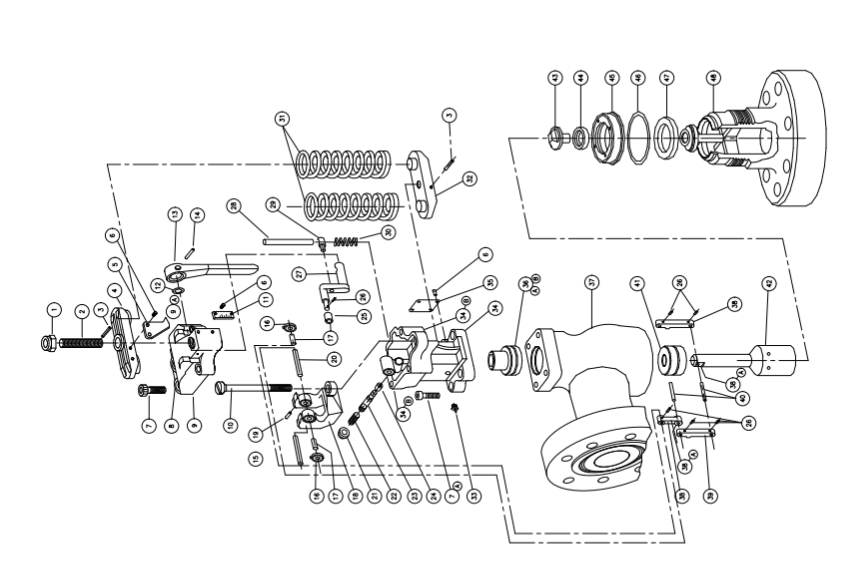

Drawings
Applications
- Oilfield drilling systems
- Mud pump discharge lines
- High pressure manifold systems
