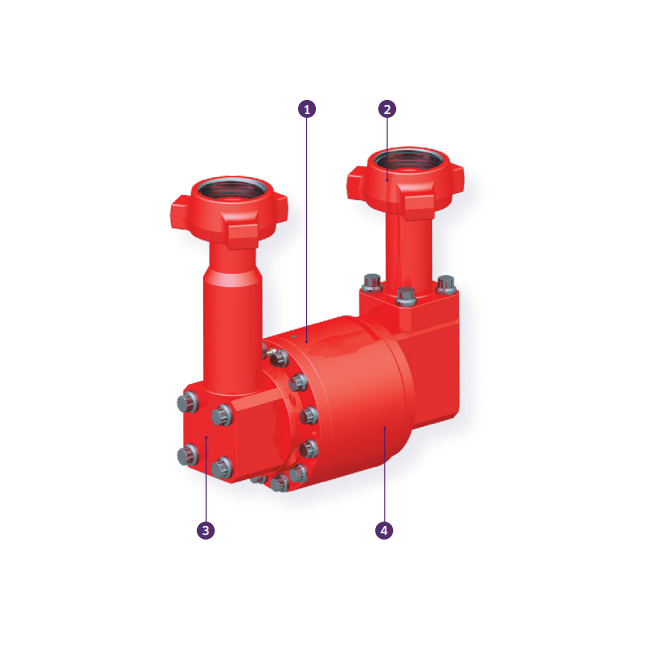

Reel Swivel

Reel Swivels are mainly used on coiled tubing unit, with one end connected to coiled tubing, another end to surface manifold for pressurized rotary operation.

Camtop Reel Swivels feature excellent sealing capability and corrosion resistance. Main sealing area surfaces are handled by special technology to increase corrosion resistance.

Camtop offers two basic structure types-U shape and L shape, suitable for standard service and H2S service. Customized design is also available to meet various demand.


  • Special repair kit is available for quick and inline maintenance.
  • Special seal type delivers high seal reliability and long service life.
  • Seal surfaces and areas exposed to fluid are handled by special technology to deliver excellent corrosion resistance.

Rated Working Pressure 69.0MPa~103.5MPa (10,000psi~15,000psi)
Nominal Size 2″, 3″
Temperature Rating -29℃~121℃(PU), -46℃~121℃ (LU) -20℉~250℉ (PU),-50℉~250℉(LU)
Service Standard, Sour Gas
Application Fracturing, Cementing, Acidizing, Testing Lines
