Mobile nitrogen charging car for pre-charging BOP accumulator systems on drilling rigs. High-pressure nitrogen cylinder storage, hand pump and digital pressure gauge. Suitable for onshore rig field use.
Nitrogen Charging Car | Mobile Nitrogen Charging Unit for BOP Accumulators
Description

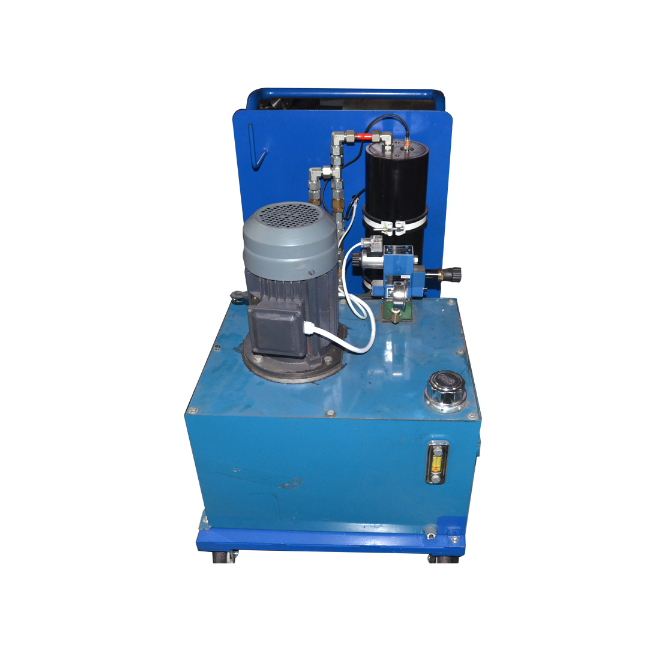

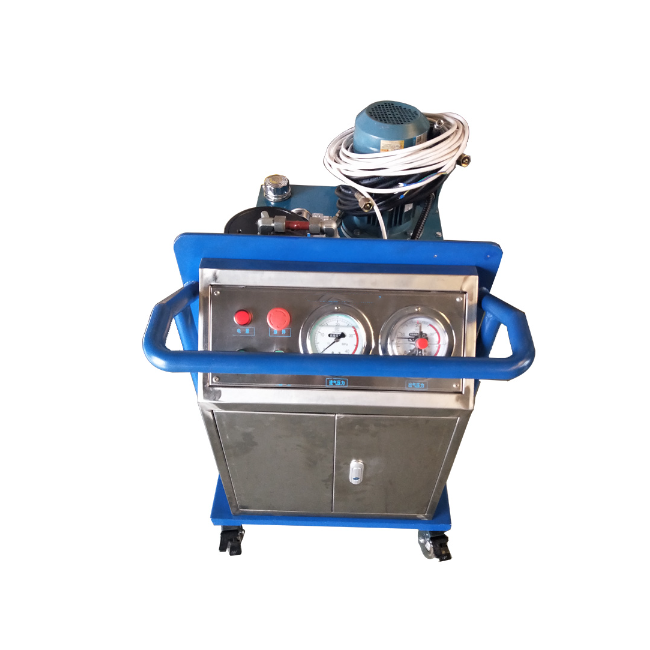

Nitrogen charging car
Mobile nitrogen charging cart which is a specially nitrogen charging equipment, normally services pre-charging & pressurize to accumulator (such as hydraulic bladder accumulator, piston accumulator, diaphragm accumulator). The maximum working pressure is 35MPa.
The principle of operation
Mobile nitrogen charging cart is composed of hydraulic, pneumatic and electric devices. As the pressure fluid enter into the pressurizing unit(piston accumulator) via the direction change valve, the fluid pushes the piston moving up and down, so the nitrogen that have entered the upper chamber (or down chamber) is be compressed and the pressure is ascending while the piston moved up (or down). And the compressed nitrogen with higher pressure enters into accumulator (or high pressure vessel) via the check valve. The piston moves up and down till the accumulator nitrogen pressure is equal to the rated pre-charge pressure.
Model code
MNC－25－P
1 2 3
1、Code ：Mobile nitrogen charging cart
2、Pressure grade：25MPa .
3、Reversing way：
hydraulic control pilot type
| model | MNC-25P |
|---|---|
| Inlet pressure, MPa | 3 – 13 |
| Maximum Output pressure, MPa | 10～25 |
| Oil pump working pressure, MPa | 25 |
| Oil pump max. fluid rate, L/min | 14.6L |
| Outer size, mm | 980×600×960 |
| Weight, Kg | 150 |
