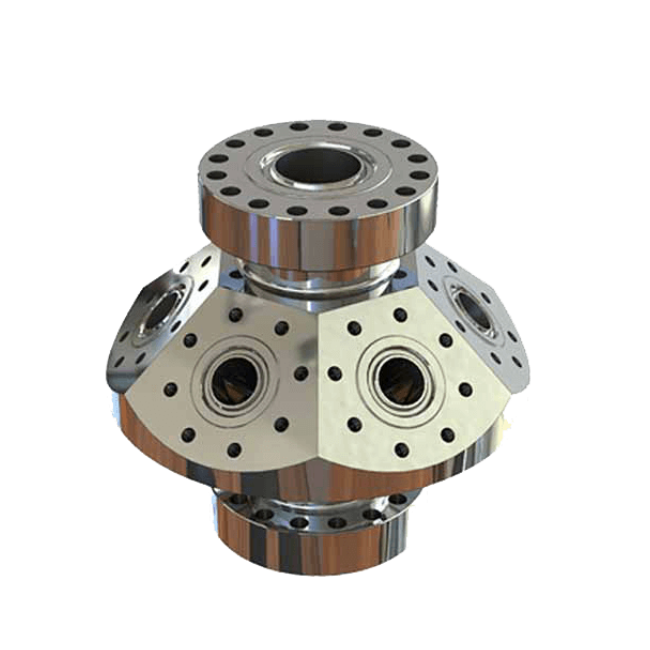

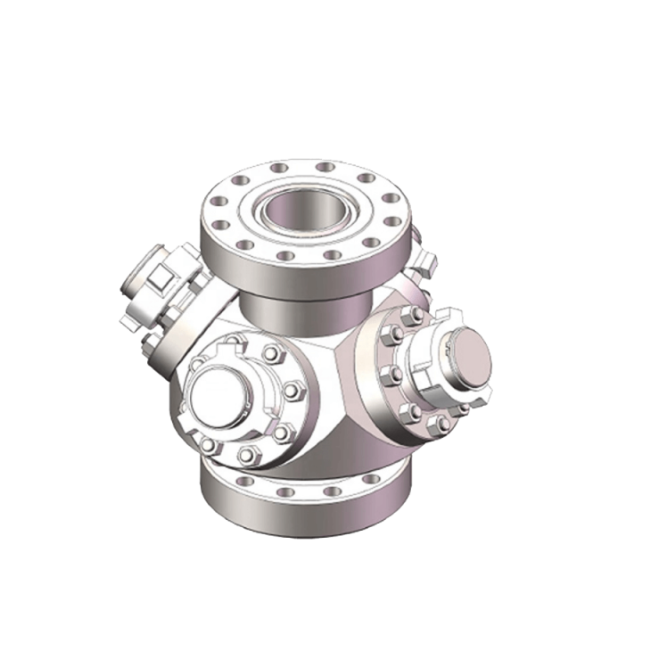

Frac heads – Goat Head

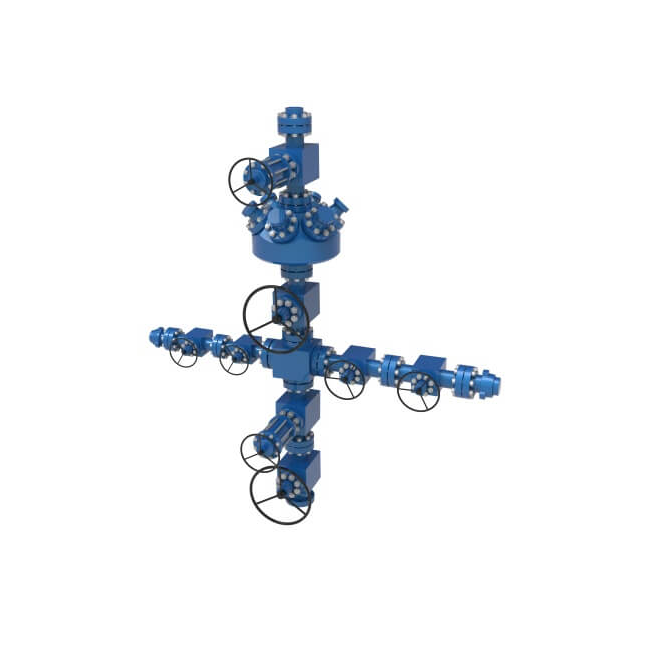

Frac head- Goat Head is the equipment often used on frac tree and frac stack during fracturing work,which is often in studded and flange-end connections.CAMTOP’s frac head are own various sizes and inlets used to tie multiple frac lines into the frac tree we can also design many type of the frac head as per the requirements.

Whether it’s ball drop, plug, and perf, coil fracing, or conventional fracing frac heads, we can build any configuration frac head to accommodate a customer’s needs. CAMTOP carries a wide variety of frac heads, up to 7 1/16” in size and for pressures up to 15,000 psi. All frac head equipment is maintained and certified to API standards. CAMTOP offers many different configurations, using manual and or hydraulic valves, depending on the customer’s specific requirements.

Frac head inquiry information

Our Frac heads are available in DD and EE trim,customers may customize their purchase through the following data:
• Working Pressure
• Type of Top Connection
• Type of Bottom Connection
• Through-Bore Minimum Width
• Number of Side Connections
• Side Connection Branch Angle
• Side Connection Branch, Type, and Pressure Rating

Types Details
Sizes 4 1/16”, 5 1/8”, 7 1/16″
Outlet Angles 45 degree or 60 degree
Outlet Options 4 to 6
Outlet Sizes 3 1/16” to 4 1/16”
Working Pressures 5 psi to 15 psi
Working Temperature -46°C-121℃
Material Class AA – HH
Specification Class PSL-1 to PSL-4
Performance Class PR-1 to PR-2
Connections Flanged and studded (Top and Bottom)
