Description

Draw works

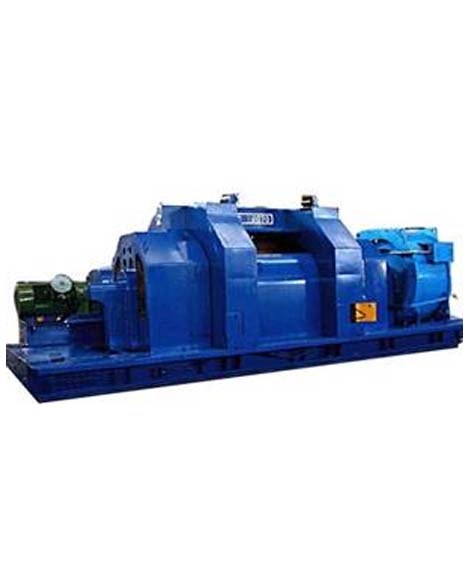

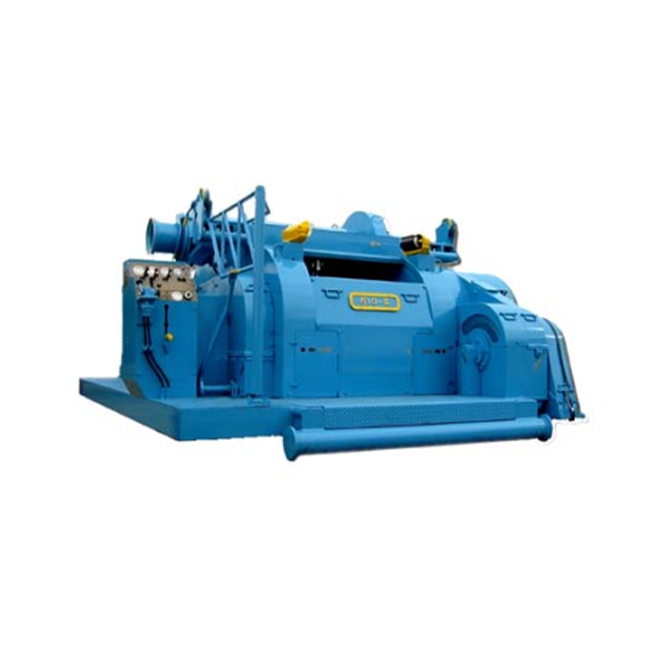

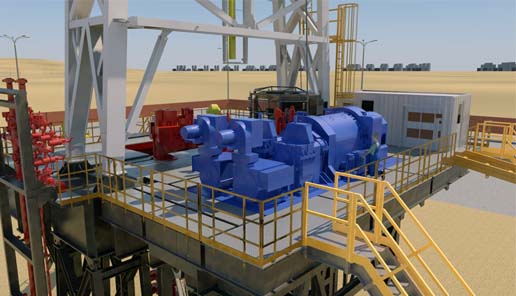

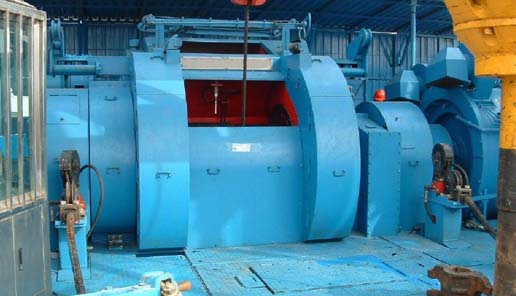

A Draw works is the primary hoisting machinery that is a component of a rotary drilling rig. Its main function is to provide a means of raising and lowering the traveling blocks. The wire-rope drilling line winds on the draw works drum and extends to the crown block and traveling blocks, allowing the drill string to be moved up and down as the drum turns. The segment of drilling line from the draw-works to the crown block is called the “fast line”. The drilling line then enters the sheaves of the crown block and it makes several passes between the crown block and traveling block pulleys for mechanical advantage. The line then exits the last sheave on the crown block and is fastened to a derrick leg on the other side of the rig floor. This section of drilling line is called the “dead line”.

Consist: Drum and shaft assembly, brake system, cathead assembly, transmission assembly, Control system, lubrication system etc.





All sheaves and shafts are made of alloy steel.
Chains are pressure lubricated.

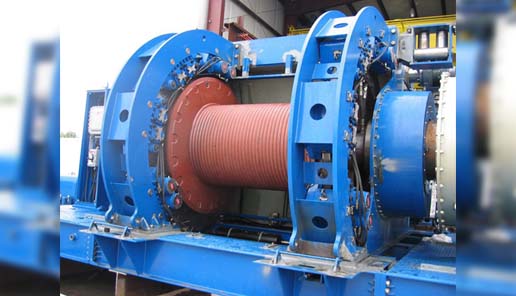

Drum is grooved. The low-speed & high-speed ends of the drum shaft are equipped with ventilating pneumatic tube clutch.
The brake rim (or disc) is water cooled and the surface is medium-frequency induction hardened that provides excellent wear-resistance capacity and long service life.
High pressure drilling fluid sealing system.
The main brake is hydraulic disc brake, and the auxiliary brake is electromagnetic eddy current brake.

Model ZP175 ZP205 ZP275 ZP375 ZP495
Model
Parameters
JC40 JC40D JC40DB JC50 JC50D JC50DB JC70 JC70DB
1000(735) 1500(1100) 2000(1470)
Max. Fast line Pull
lbf.(kN)
61820(275) 76435(340) 109030(485)
1 1/4(32) 1 3/8(35) 1 1/2(38)
Drum Size (dia.×width)
in (mm)
25.20×51.25
(640×1302)
26.97×44.80
(685×1138)
30.31×53.58
(770×1361)
Gears for Hoisting Speed 4+2R Step-less speed changing 6+2R Step-less speed changing 6+2R Step-less speed changing
59.06×2.99(1500×76) 63×2.99(1600×76)
Main Brake hydraulic disc brake hydraulic disc brake, energy- consumption brake hydraulic disc brake hydraulic disc brake, energy- consumption brake hydraulic disc brake hydraulic disc brake, energy- consumption brake
Auxiliary Brake DWS40L WCBD236 FDWS50LD WCBD336 DS-70
