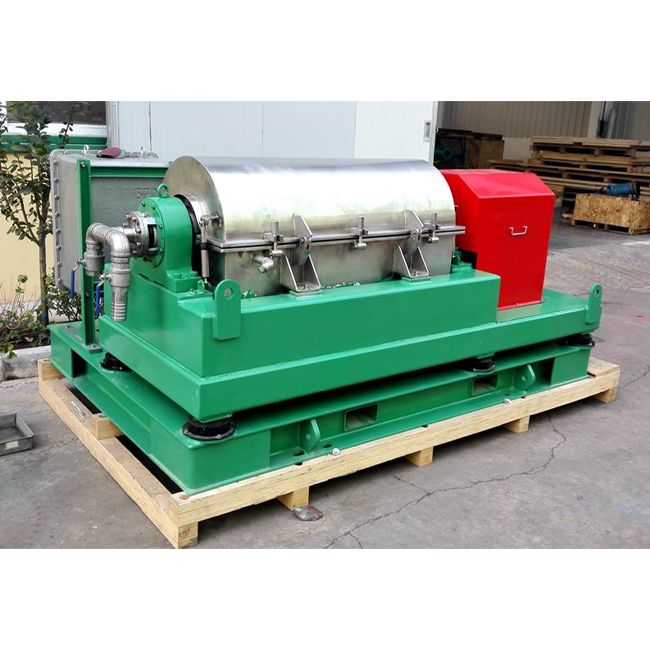

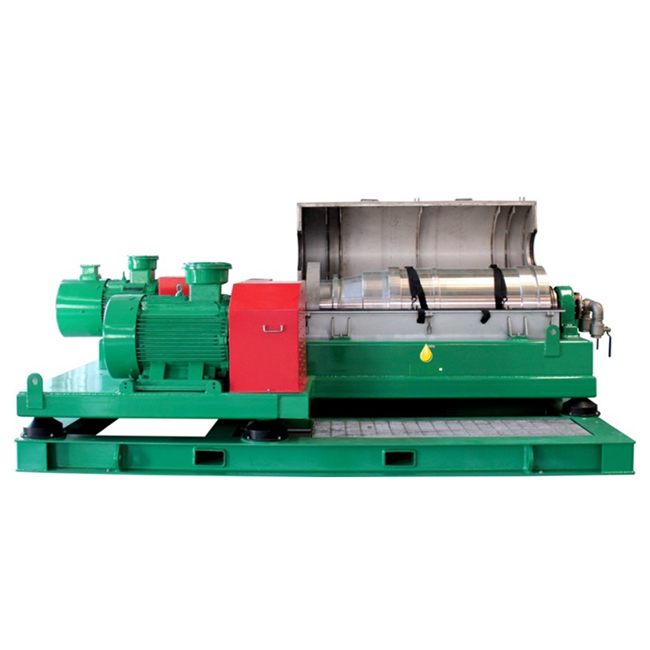

Decanter Centrifuge is the premium centrifuge with the best material configuration. It is the best option for middle term and long term investment because of its reliability and working life. This series of decanter centrifuge are popular for the drilling waste management, oil sludge treatment, tank cleaning waste treatment, as well as solids control, barite recovery, Low gravity and high gravity solids separation, dewatering etc.
- High G Force up to max 3000. Big Volume Design.
- Bowl Material Duplex Stainless Steel 2205 made from centrifugal casting.
- Conveyor Wear Surface: Tungsten carbide tiles .The life is much longer than hard surface. And all tiles is interchangeable for easy maintenance.
- Pressurized Explosion Proof with PLC and HMI control for automatically operation.
- All the bearings for the centrifuge are SKF brand premium bearings.
|Max Bowl Speed||3900RPM||3900RPM||3200RPM||3000PRM|
|Gear Box Ration||57:1||57:1||57:1||35:1|
|Main Drive Motor||37KW(50HP)||37KW(50HP)||55KW(75HP)||90KW(120HP)|
|Back Drive Motor||11KW(15HP)||11KW(15HP)||22KW(30HP)||37KW(50HP)|
|EX Standard||ExdIIBt4 / IEC EX/ ATEX|
|Electric Carbinet||Exd Standard||PLC+Positive Pressurized|
