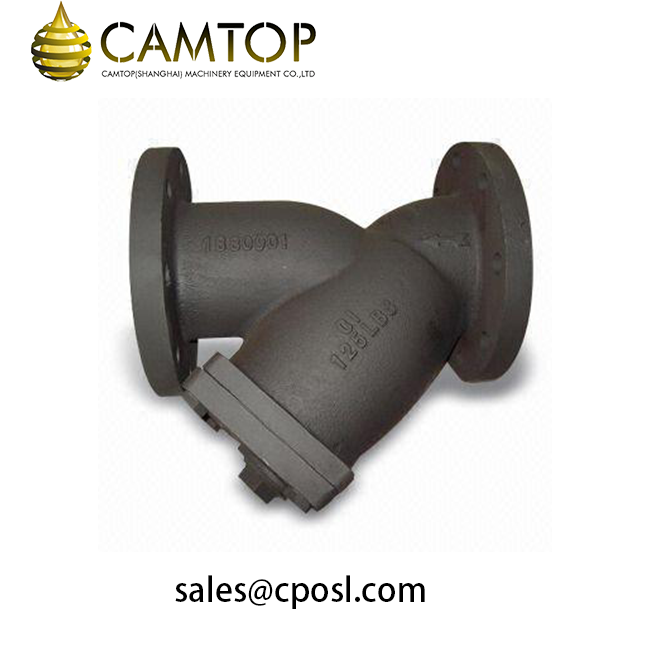

Y-Strainers with Stainless Steel Mesh Screen

Short Description

Model No.: LD-028-YS4 Hits: 3663

Y Strainer Manufacturer CAMTOP Supplies ANSI, DIN 3202-F1, BS 2080 Standard cast iron, ductile iron Body Y-Strainers with Stainless Steel Mesh Screen.
Key Specifications / Features
Y Strainer Size: 1/2 to 12 inches
Nominal pressure: PN1.0/1.6mPa
Face to face dimension: ANSI B16.1, DIN3202-F1, and BS2080
Flange drilled is according to ANSI B16.1, ANSI B16.5, DIN 2501, and BS4504
Test standard: API 598
Body and bonnet: cast iron and ductile iron
Disc: cast iron, ductile iron, and rubber water, steam, and oil as suitable medium
Mesh Screen: stainless steel
Bolt and nut: carbon steel with zinc plated
Standard: ANSI, DIN3202-F1, and BS2080
