Solid Test Plugs for Cameron-style Type H BPV tubing hanger profiles. Used to pressure-test the tubing hanger and wellhead assembly during Christmas tree installation. Available in 4″ and 6-5/16″ sizes, rated up to 20,000 PSI working pressure. Compatible with all standard Type H BPV bore configurations.
Type H Solid Test Plugs | BPV Tubing Hanger Test Plug Wellhead
Description
Type “H” Solid Test Plugs

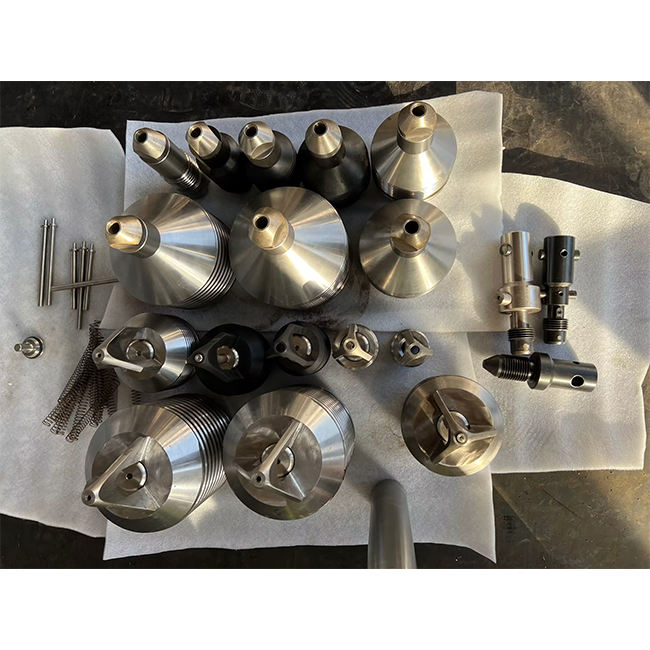

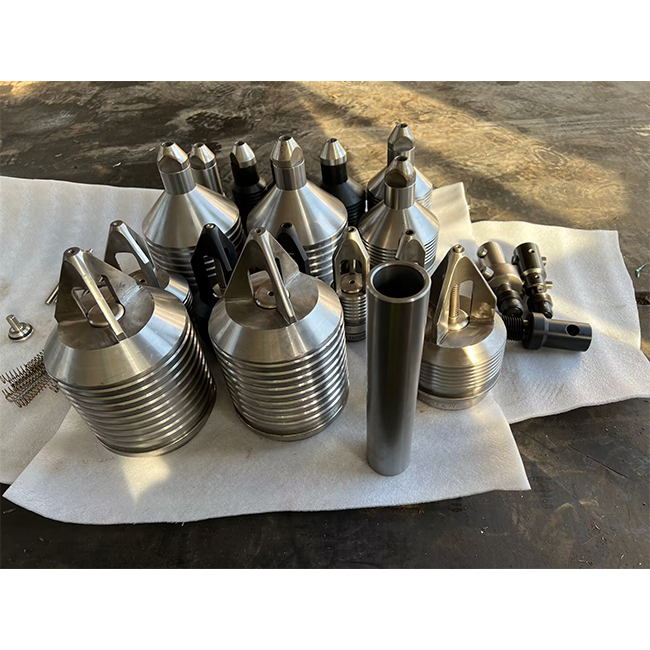

Back Pressure Valve is installed inside the tubing hanger for holding pressure from below to isolate well pressure during the wellhead installation, CAMTOP provides the back pressure valve which is same as Cameron back pressure valve type ‘H’, both two way BPV and one way BPV are available, the most common size we have manufactured is 6 5/16″ and 4″, the working pressure is upto 20,000PSI.
Back Pressure Valve feature:
- 1. Interchangeable with Cameron back pressure valve type ‘H’.
- 2. The body & piston material can be AISI 410SS, 17-4 PH, Inconel 718, etc, which is suitable for H2S service.
- 3. H2S service is used up to 20,000psi.
- 4. Size available from 1 1/4″ – 6 5/16″.
