PU rotary table mat 3000x3400mm with 1680mm center hole

Rotary Table Mat Size, Weight and Specification | PU Rig Floor Anti-Slip Mat

A rotary table mat is an anti-slip mat used on oilfield drilling rigs.
The standard size is 3000 × 3400 mm with a 1680 mm center hole,
and the weight ranges from 280–380 kg depending on thickness.

Rotary table mat made of high-quality polyurethane (PU), designed for oilfield drilling rigs to provide excellent anti-slip performance, wear resistance, and safety protection. Available in standard size 3000 × 3400 mm with 1680 mm center hole, weight ranging from 280–380 kg. Custom sizes and configurations are supported.

Description
Reviews (0)

Description

Get Quote Now Rotary Table Mat Size, Weight and Specification | PU Rig Floor Anti-Slip Mat

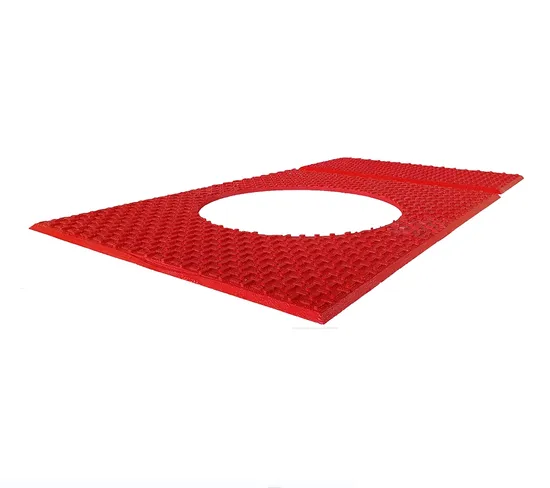

Rotary Table Mat (PU Anti-Slip Rig Floor Mat)

Product Images

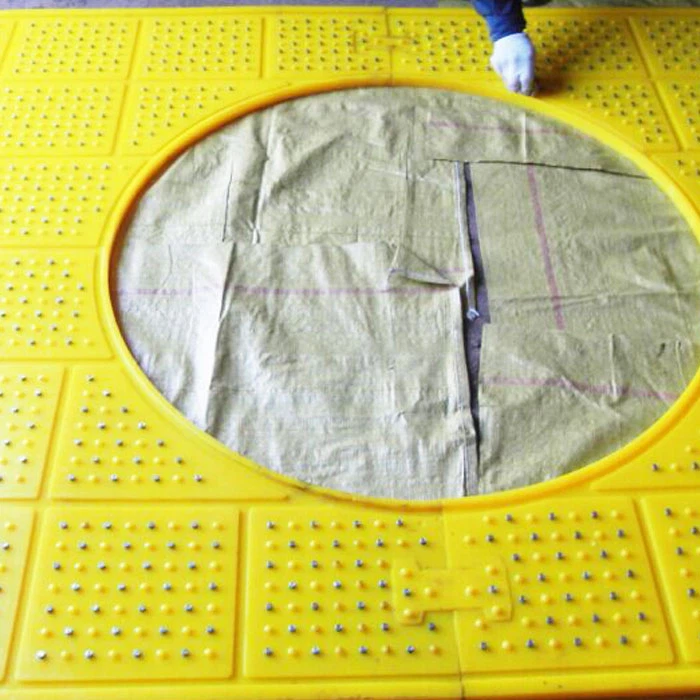

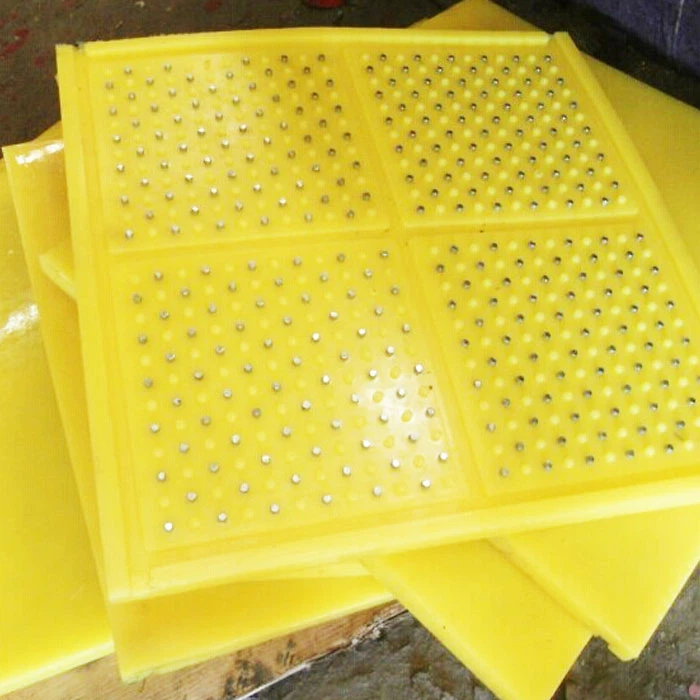

Anti-slip surface of polyurethane rotary table mat with studded design — **Anti-Slip Surface Detail**
Close-up view of the polyurethane rotary table mat surface showing the studded anti-slip design for improved grip, wear resistance, and safety in oil, water, and mud conditions.

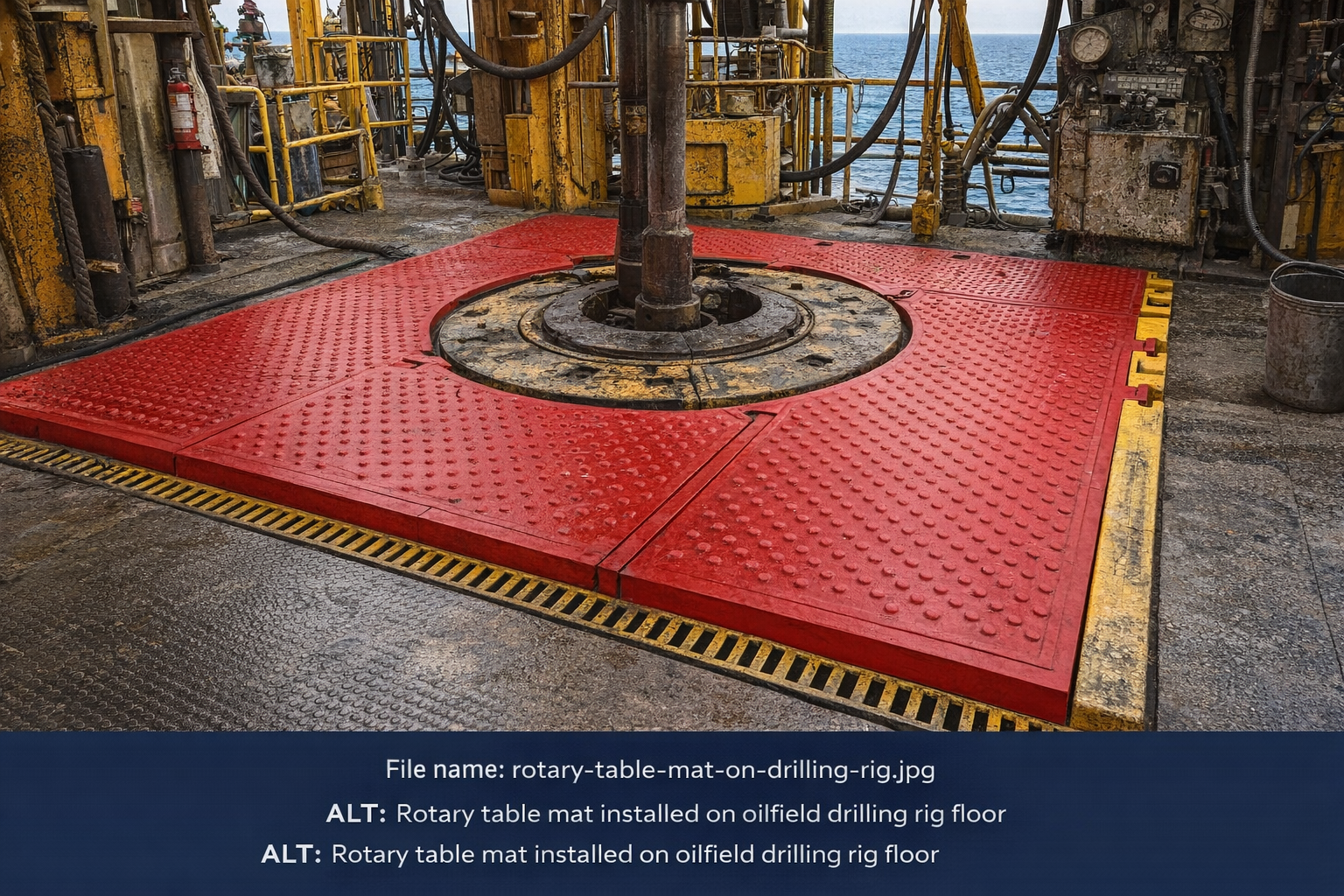

Rotary table mat installed on oilfield drilling rig floor — **Application on Drilling Rig**
Rotary table mat installed around the rotary table area on an oilfield drilling rig floor, providing anti-slip protection and improving operational safety.

Specification

Product Name	Rotary Table Mat
Material	Polyurethane (PU)
Overall Size	3000 × 3400 mm
Center Hole Diameter	1680 mm
Thickness	30–40 mm
Weight	280–380 kg
Color	Red / Yellow
Structure	One-piece or puzzle type
Application	Oilfield drilling rig floor anti-slip protection
Customization	Available for size, thickness, color, and structure

Key Features

Excellent anti-slip performance in oil, water, and mud environments
High wear resistance and long service life
Oil-resistant and corrosion-resistant
Shock absorption to protect tools and equipment
Optional embedded steel studs for enhanced grip
Drainage grooves available for fluid discharge

Application

Oilfield drilling rigs
Workover rigs
Offshore drilling platforms
Rotary table working area

FAQ

What is a rotary table mat used for?

A rotary table mat is used on drilling rig floors to provide anti-slip protection and prevent tools or debris from falling into the well.

What material is used for rotary table mats?

Most rotary table mats are made of polyurethane (PU), which offers excellent durability, wear resistance, and oil resistance in harsh oilfield environments.

How heavy is a rotary table mat?

The weight typically ranges from 280 kg to 380 kg depending on thickness, structure, and customization requirements.

Can the rotary table mat be customized?

Yes, the size, thickness, color, and structure can all be customized according to the rotary table model and customer requirements.

Contact Us

For quotation, drawings, technical details, or custom specifications, please contact us directly. We can provide customized rotary table mats according to your drilling rig requirements.

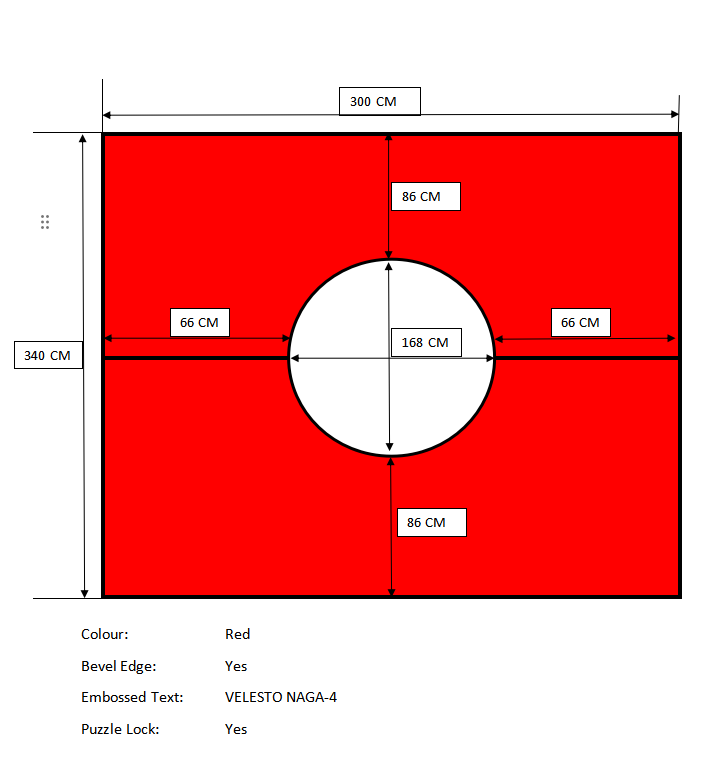

Technical Drawing

rotary table mat drawing 3000x3400mm 1680mm center hole

Figure: Rotary table mat dimension drawing with standard size and center hole.

Why Choose Our Rotary Table Mat?

10+ years oilfield equipment experience
Exported to 30+ countries
Strict quality control
Custom design available
