DSL135 Power Swivel Technical Data

The DSL135 Power Swivel is a high-performance hydraulic power swivel designed for oilfield drilling, workover operations, and well servicing applications. It provides stable torque output, precise speed control, and reliable hydraulic performance, making it an essential piece of equipment for modern drilling operations.

Designed for oil and gas drilling contractors, workover service companies, and drilling equipment providers, the DSL135 drilling power swivel offers a powerful alternative to traditional rotary drilling systems.

With a maximum static load of 1,350 kN and maximum torque of 15,500 N·m, the DSL135 power swivel delivers strong rotational force and efficient drilling performance in demanding field environments

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , ,

Description

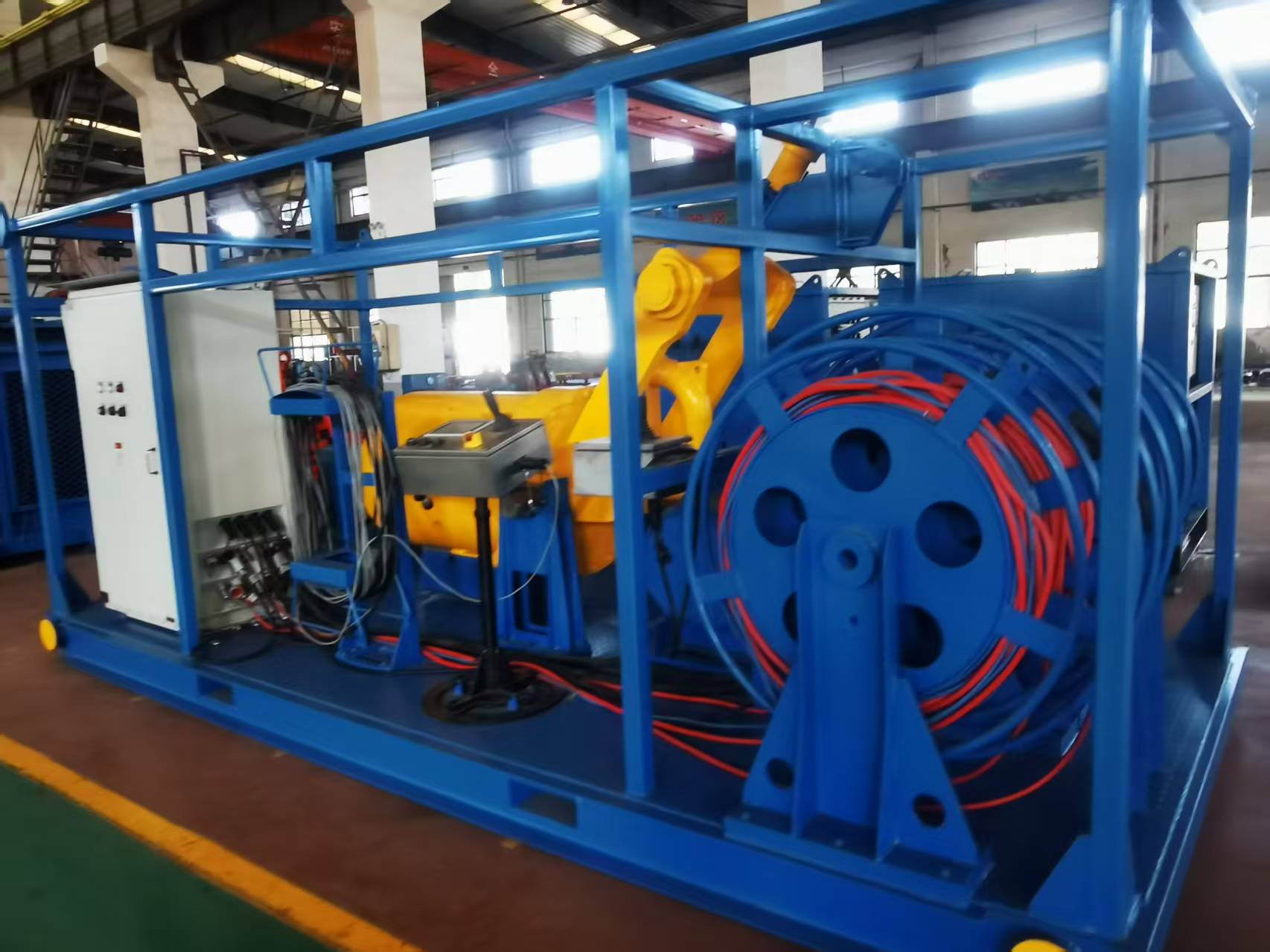

DSL135 Power Swivel

Productor Description:

DSL135 power swivel (hereinafter referred to as “this Product”), of which central pipe rotates under driving force of hydraulic variable motor through gear reduction system, is featured by compact structure and designed weight of 1,200 kg, making it applicable to drilling derrick or work-over derrick.
This Product can provide stable and impact-free torque, have the maximum static load of 1,350kN at zero speed, and be capable of bearing 934kN dynamic load at revolving speed of 80rpm.
This Product is applicable to assembly/disassembly of long and single drilling rods without using spinning chain, pipe wrench and Kelly spinner and, by reducing the startup/shutdown times of drilling rig, this Product can help improve the efficiency of drilling rig and reduce the wear of pump, winch and other drilling equipment.
This Product is configured with closed circuit hydraulic system, of which remote hydraulic control operating device is equipped with hydraulic control proportional handle in order to adjust the flow and direction of hydraulic oil. This Product’s central pipe can realize stepless speed change of revolving speed.
This Product also covers the functions as common swivels. While central pipe enters revolving or static state, drilling fluid will enter the drilling rod through goose neck, wash pipe and central pipe for circulating.
This Product is composed of two parts, i.e. YSL135 hydraulic swivel and DKYC320/31.5Y hydraulic power control device, all of which are mounted on the entire lever body to bring a firm and light structure.

Major Technical Parameters

Table 1: Major Technical Parameters of DSL135 Power Swivel
Item Technical Parameters
Metric System British System
Max. static load 1,350 kN 150 US ton
Rated dynamic load (80rpm) 934 kN 103 US ton
Max. torque 15,500 N.m 11,500 ft.lbf
Max. revolving speed 160r/min
Max. circulating pressure 35 MPa 5,000 psi
Connecting thread of goose neck 3LP
Connecting thread of central pipe NC38 (API 3 1/2IF)
Specification of elevator 4” or 5”
Model of diesel engine Commins 6CTA8.3-C260
Rated power/revolving speed of diesel engine 194kW 260HP
Capacity of hydraulic pipeline 30.5 m 100 ft
Specification of high-pressure pipe ∮32 1 1/4”
Specification of drain pipe ∮25 1”
Max. working pressure of hydraulic system 31.5 MPa 4570 psi
Max. working flow of hydraulic system 320 L/min 84.5 gal/min
Rated work pressure of hydraulic system 24 MPa 3,480 psi
Rated work flow of hydraulic system 280L/min 74 gal/min
Effective volume of hydraulic oil tank 450L 119 gal
Effective volume of diesel oil tank 320L 84.5 gal
Cooling area 15m2 161.5ft2
Dimensions 5,300×2,100×2,170 mm 208.7×82.7×85.4in
Total weight 7570 kg 16690 lbs
Applicable ambient temperature -20～+55℃

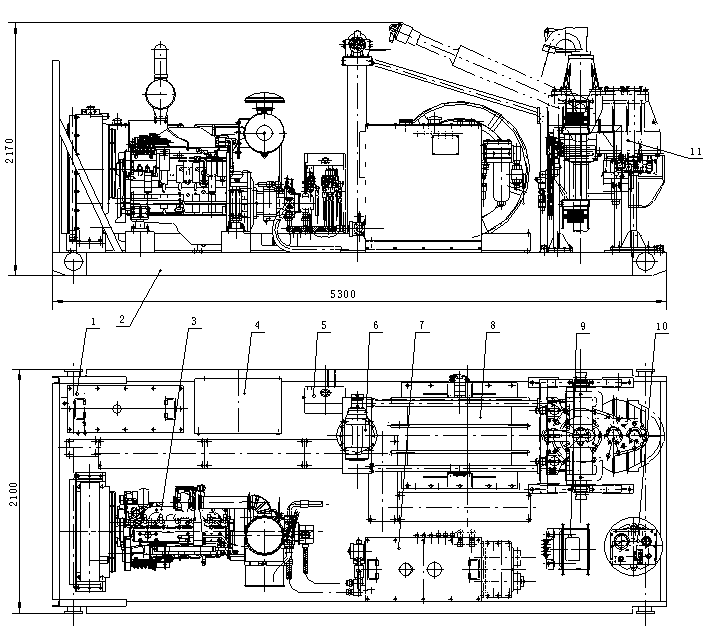

DSL135 DRAWING
9. List of Hydraulic Pipes for DSL135 Power Swivel (Kerui)
I. List of Hydraulic Pipes for DKYC320/31.5Y Hydraulic Power Control Unit
S/N Code From Port 1 To Port 2 Hose code Qty.
1 HF-01 Port A of main pump 90°, PA532SF6A High-pressure filter (right inner side) Direct connection,  M45 X2A 32IV-3000 1
2 HF-02 Port B of main pump 135°, PA532SF6A High-pressure filter (ball valve) (left inner side) Direct connection,  M45 X2A 32IV-2850 1
3 HF-03 Flushing oil port of main pump Direct connection,  M39X2A Oil drainage port T1 of hydraulic oil tank Direct connection,  M39X2A A25I-4400 1
4 HF-04 Pressure measurement interface A of main pump 90°, M14X1.5A Port P11 for shuttle block of instrument box Direct connection, M14X1.5A A6II-2250 1
5 HF-05 Pressure measurement interface B of main pump 90°, M14X1.5A Port P21 for shuttle block of instrument box Direct connection, M14X1.5A A6II-2350 1
6 HF-06 Variable displacement control port Y1 of main pump 90°, M14X1.5A Port Y1 of concentration block of winding frame Direct connection, M14X1.5A A6I-4500 1
7 HF-07 Variable displacement control port Y2 of main pump 90°, M14X1.5A Port Y2 of concentration block of winding frame Direct connection, M14X1.5A A6I-4500 1
8 HF-07 Port G for oil supplementation pump of main pump Direct connection, M14X1.5A Port Ga for torque increase block of instrument box Direct connection, M14X1.5A A6I-2500 1
9 HF-09 Oil supplementation and suction port of main pump 90°, M45X2A Port S for oil filter of hydraulic oil tank Direct connection,  M45X2A A36-700 corrugated pipe 1
10 HF-10 Oil suction port of gear oil pump 90°, M45X2A Port S1 for oil filter of hydraulic oil tank Direct connection,  M45X2A A36-650 corrugated pipe 1
11 HF-11 Oil outlet of gear oil pump Direct connection,  M18×1.5C Port P for flow valve of auxiliary pump console Direct connection,  M18×1.5C C10I-3800 1
12 HF-12 High-pressure filter (right outer side) Direct connection,  M45 X2A Swivel joint of hydraulic windlass Direct connection,  M45 X2A A32IV-1950 1
13 HF-13 High-pressure ball valve of high-pressure filter (left outer side) Direct connection,  M45 X2A Swivel joint of hydraulic windlass Direct connection,  M45 X2A A32IV-2050 1
14 HF-14 Swivel joint (internal) A of hydraulic windlass 90°, M45X2A Universal joint (quick coupling) A of swivel Direct connection,  NPT11/4 32IV-30000 1
15 HF-15 Swivel joint (internal) B of hydraulic windlass 90°, M45X2A Universal joint (quick coupling) B of swivel Direct connection,  NPT11/4 32IV-30000 1
16 HF-16 Swivel joint (internal) T of hydraulic windlass 90°, M39X2A Oil drainage joint (quick coupling) T of swivel Direct connection,  NPT1 25II-30000 1
17 HF-17 Port A of cooler (left) Direct connection,  M39X2A Swivel joint of hydraulic windlass (flushing oil of swivel) Direct connection,  M39X2A A25I-6400 1
18 HF-18 Outlet B of cooler (right) Direct connection,  M39X2A Port T2 for oil filter of hydraulic oil tank Direct connection,  M39X2A A25I-6000 1
19 HF-19 Port Pb2 for shuttle block of instrument box Direct connection,  M14×1.5A Pressure gauge for instrument box system (0-40MPa) Direct connection,  M14×1.5A HFP1-P1-3-P-0.65 1
20 HF-20 Port Pb3 for shuttle block of instrument box Direct connection,  M14×1.5A Port P of concentration block of winding frame Direct connection,  M14×1.5A A6II-4500 1
21 HF-21 Port PG1 for torque increase block of instrument box Direct connection,  M14×1.5A Port Pb of concentration block of winding frame Direct connection,  M14×1.5A A6I-4500 1
22 HF-22 Port PG2 for torque increase block of instrument box Direct connection,  M14×1.5A Oil supplementation pressure gauge (0-10MPa) of instrument box Direct connection,  M14×1.5A HFP1-P1-3-P-0.65 1
23 HF-23 Port Gk for torque increase block of instrument box Direct connection,  M14×1.5A Port Pk of concentration block of winding frame Direct connection,  M14×1.5A A6I-4500 1
24 HF-24 Port A for torque increase block of instrument box Direct connection,  M14×1.5A Variable joint for motor of auxiliary pump console 90°, M14X1.5A A6I-2600 1
25 HF-25 Port T1 for torque increase block of instrument box Direct connection,  M14×1.5A Port T of concentration block of winding frame Direct connection,  M14×1.5A A6I-4500 1
26 HF-26 Port T2 for torque increase block of instrument box Direct connection,  M14×1.5A Oil drainage port T3 of hydraulic oil tank Direct connection,  M14×1.5A A6I-4300 1
27 HF-27 Port P for proportion hydraulic handle of hydraulic console Hinge type Port P2 for transmission block of hydraulic console Direct connection,  M14×1.5A RS343.411.00 1
28 HF-28 Port T for proportion hydraulic handle of hydraulic console Hinge type Port T2 for transmission block of hydraulic console Direct connection,  M14×1.5A RS343.412.00 1
29 HF-29 Port A for proportion hydraulic handle of hydraulic console Hinge type Port A1 for transmission block of hydraulic console Direct connection,  M14×1.5A RS343.412.00 1
30 HF-30 Port B for proportion hydraulic handle of hydraulic console Hinge type Port B1 for transmission block of hydraulic console Direct connection,  M14×1.5A RS343.413.00 1
31 HF-31 Port P for three-way valve of hydraulic console Direct connection,  M14×1.5A Port P1 for transmission block of hydraulic console Direct connection,  M14×1.5A A6I-220 1
32 HF-32 Port A for three-way valve of hydraulic console Direct connection,  M14×1.5A Port A2 for transmission block of hydraulic console Direct connection,  M14×1.5A A6I-200 1
33 HF-33 Port T for three-way valve of hydraulic console Direct connection,  M14×1.5A Port T3 for transmission block of hydraulic console Direct connection,  M14×1.5A A6I-300 1
34 HF-34 Pressure release valve T of hydraulic console Direct connection,  M14×1.5A Port B1 for transmission block of hydraulic console T1 Direct connection,  M14×1.5A A6I-330 1
35 HF-35 Pressure release valve P of hydraulic console Direct connection,  M14×1.5A Port P3 for transmission block of hydraulic console Direct connection,  M14×1.5A HFP1-P1-3-P-0.35 1
36 HF-36 YK60-III pressure gauge for hydraulic control console Direct connection,  M14×1.5A Port PT1 for transmission block of hydraulic console Direct connection,  M14×1.5A HFP1-P1-3-P-0.3 1
37 HF-37 YK100-III pressure gauge for hydraulic control console Direct connection,  M20×1.5A Port PT2 for transmission block of hydraulic console Direct connection,  M14×1.5A HFP1-P2-3-P-0.3 1
38 HF-38 Port P’ for transmission block of hydraulic console Direct connection,  M14×1.5A Port P’ of concentration block of winding frame Direct connection,  M14×1.5A A6II-15000 1
39 HF-39 Port Pb’ for transmission block of hydraulic console Direct connection,  M14×1.5A Port Pb’ of concentration block of winding frame Direct connection,  M14×1.5A A6I-15000 1
40 HF-40 Port T’ for transmission block of hydraulic console Direct connection,  M14×1.5A Port T’ of concentration block of winding frame Direct connection,  M14×1.5A A6I-15000 1
41 HF-41 Port Y1’ or transmission block of hydraulic console Direct connection,  M14×1.5A Port Y1’ of concentration block of winding frame Direct connection,  M14×1.5A A6I-30000 1
42 HF-42 Port Y2’ or transmission block of hydraulic console Direct connection,  M14×1.5A Port Y2’ of concentration block of winding frame Direct connection,  M14×1.5A A6I-15000 1
43 HF-43 Port Pk’ for transmission block of hydraulic console Direct connection,  M14×1.5A Port Pk’ of concentration block of winding frame Direct connection,  M14×1.5A A6I-15000 1
44 HF-44 Control joint for motor of auxiliary pump console Direct connection,  NPT1/4 Variable control port for hydraulic motor of swivel Direct connection,  NPT1/4 6I-30500 1
45 HF-45 Port P1 for throttle valve Direct connection,  M22x1.5C Port P for multiway valve Direct connection,  M22×1.5C C13II-900 1
46 HF-46 Port T for multiway valve Direct connection,  M22×1.5C Port T1 for throttle valve Direct connection,  M22×1.5C C13I-600 1
47 HF-47 Port T for throttle valve of console Direct connection,  M22×1.5C Oil drainage port T5 of hydraulic oil tank Direct connection,  M22×1.5C C13I-3200 1
48 HF-48 Pressure gauge port of throttle valve block Direct connection,  M14×1.5A Pressure gauge for operation console Direct connection,  M14×1.5A A6I-700 1
49 HF-49 Port A1 for multiway valve of auxiliary pump console Direct connection,  M22×1.5C Port A for hydraulic motor of traction winch Direct connection,  M22×1.5C C13II-1850 1
50 HF-50 Port B1 for multiway valve of auxiliary pump console Direct connection,  M22×1.5C Port B for hydraulic motor of traction winch Direct connection,  M22×1.5C C13II-1850 1
51 HF-51 Oil drainage port T for hydraulic motor of traction winch 90°,  M18×1.5C Oil drainage port T6 of hydraulic oil tank Direct connection,  M18×1.5C C10I-3100 1
52 HF-52 Port A2 for multiway valve of auxiliary pump console Direct connection,  M22×1.5C Port A for motor of hydraulic winch Direct connection,  M22×1.5C C13II-1900 1
53 HF-53 Port B2 for multiway valve of auxiliary pump console Direct connection,  M22×1.5C Port B for motor of hydraulic winch Direct connection, M22×1.5C C13II-1900 1
54 HF-54 Oil drainage port T for motor of hydraulic winch Direct connection,  M18×1.5C Oil drainage port T7 of hydraulic oil tank Direct connection,  M18×1.5C C10I-4000 1
II. List of Hydraulic Pipes for YSL135 Hydraulic Swivel
1 HF-61 Hydraulic motor A1 of swivel 90°, M36×2A T-junction A1 (upper right) for shell bracket of swivel Direct connection,  M36×2A 25IV-780 1
2 HF-62 Hydraulic motor A2 of swivel 90°, SAE1″ split flange T-junction A2 (right lower) for shell bracket of swivel Direct connection,  M36×2A 25IV-1100 1
3 HF-63 Hydraulic motor B1 of swivel 90°, SAE1″ split flange T-junction A1 (left lower) for shell bracket of swivel Direct connection,  M36×2A 25IV-1100 1
4 HF-64 Hydraulic motor B2 of swivel 90°, M36×2A T-junction B2 (left lower) for shell bracket of swivel Direct connection,  M36×2A 25IV-780 1
5 HF-65 Variable control port O1 for hydraulic motor of swivel Direct connection,  M22×1.5C T-junction O1 for shell bracket of swivel Direct connection,  M22×1.5C C13I-1050 1
6 HF-66 Variable control port O2 for hydraulic motor of swivel Direct connection,  M22×1.5C T-junction O2 for shell bracket of swivel Direct connection,  M22×1.5C C13I-900 1
7 HF-67 Variable control port K1 for hydraulic motor of swivel Direct connection,  M14×1.5A T-junction K1 for shell bracket of swivel Direct connection,  M14×1.5A A6I-1000 1
8 HF-68 Variable control port K2 for hydraulic motor of swivel Direct connection,  M14×1.5A T-junction K2 for shell bracket of swivel Direct connection,  M14×1.5A A6I-1350 1
