H1: DSL135 Power Swivel – High Torque Hydraulic Power Swivel for Oilfield Drilling

The DSL135 Power Swivel is a high-performance hydraulic power swivel designed for oilfield drilling, workover operations, and well servicing applications. It provides stable torque output, precise speed control, and reliable hydraulic performance, making it an essential piece of equipment for modern drilling operations.

Designed for oil and gas drilling contractors, workover service companies, and drilling equipment providers, the DSL135 drilling power swivel offers a powerful alternative to traditional rotary drilling systems.

With a maximum static load of 1,350 kN and maximum torque of 15,500 N·m, the DSL135 power swivel delivers strong rotational force and efficient drilling performance in demanding field environments.

8a8190e8-b120-42fb-9b60-b7ea8e5…

---

H2: What is a Power Swivel?

A power swivel is a hydraulic-driven drilling tool used to rotate drill strings during drilling, workover, and well repair operations.

Unlike traditional rotary drilling systems that rely on spinning chains or mechanical rotation tools, a hydraulic power swivel provides controlled torque and rotational speed through a hydraulic motor and gear reduction system.

The DSL135 hydraulic power swivel integrates a diesel-powered hydraulic unit and swivel assembly, allowing operators to perform drilling operations more efficiently and safely.

Key functions of a drilling power swivel include:

• Rotating drill strings

• Supporting drilling circulation

• Improving drilling efficiency

• Reducing mechanical wear on rigs

---

H2: Key Features of DSL135 Hydraulic Power Swivel

H3: High Torque Output for Heavy Drilling Operations

The DSL135 drilling power swivel delivers powerful torque to support demanding drilling and workover tasks.

Key torque capabilities:

• Maximum torque: 15,500 N·m

• Stable torque transmission

• Reduced mechanical shock and vibration

The hydraulic motor drives the central pipe through a multi-stage gear reduction system, ensuring smooth and efficient torque output.

8a8190e8-b120-42fb-9b60-b7ea8e5…

---

H3: High Load Capacity for Oilfield Applications

The DSL135 power swivel is designed to handle heavy drilling loads safely.

Load capacity includes:

• Maximum static load: 1,350 kN (150 tons)

• Rated dynamic load: 934 kN at 80 rpm

This high load capacity allows the equipment to support long drill strings during drilling or workover operations.

8a8190e8-b120-42fb-9b60-b7ea8e5…

---

H3: Stepless Speed Control

One of the most important advantages of the DSL135 hydraulic power swivel is its stepless speed control system.

Using a hydraulic proportional control handle, operators can easily adjust:

• Rotation speed

• Direction of rotation

• Torque output

This allows precise drilling control and smooth forward or reverse rotation during operation.

8a8190e8-b120-42fb-9b60-b7ea8e5…

---

H3: Integrated Diesel Hydraulic Power System

The DSL135 power swivel includes a diesel-driven hydraulic power control unit, ensuring reliable power supply in remote drilling sites.

The power unit includes:

• Cummins diesel engine

• Hydraulic pump system

• Hydraulic oil tank

• Cooling system

• High-pressure filters

This integrated system converts mechanical energy into hydraulic energy to drive the swivel motor efficiently.

8a8190e8-b120-42fb-9b60-b7ea8e5…

---

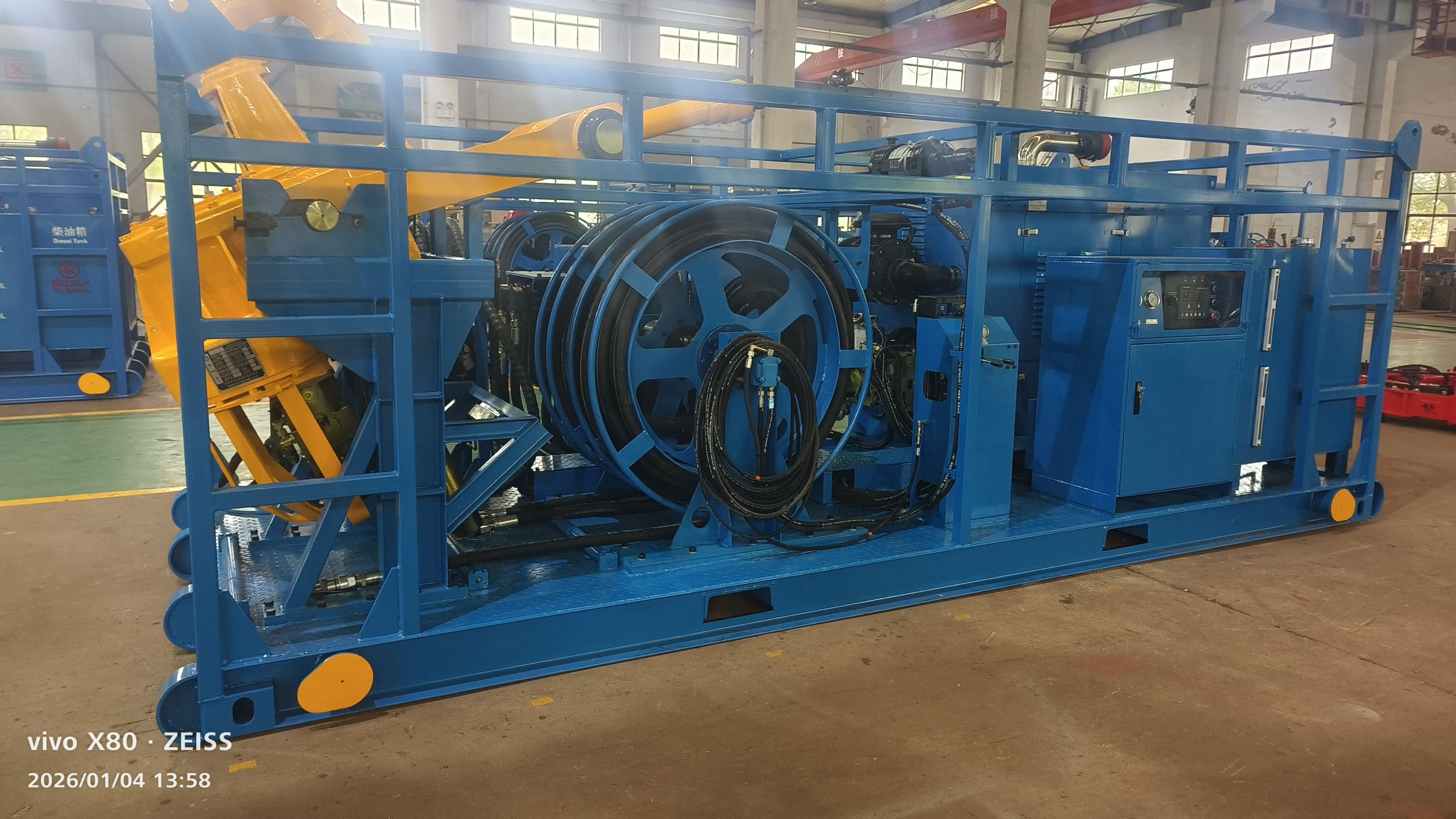

H3: Compact Skid Mounted Structure

All major components of the DSL135 drilling power swivel are installed on a skid-mounted base, which simplifies transportation and installation.

Benefits include:

• Easy transportation to drilling sites

• Compact equipment layout

• Fast installation

• Reduced setup time

This design also protects hydraulic pipelines and improves overall equipment durability.

---

H2: Applications of DSL135 Power Swivel

The DSL135 hydraulic power swivel is widely used in various drilling and well service operations.

H3: Oil and Gas Drilling

The equipment is suitable for:

• Oil well drilling

• Gas well drilling

• Directional drilling

• Workover drilling operations

Its stable torque output improves drilling performance and reduces operational downtime.

---

H3: Workover and Well Repair

The DSL135 drilling swivel is commonly used for:

• Fishing operations

• Casing cutting

• Tubing removal

• Cement removal

• Well repair operations

These operations require precise torque control and reliable rotation.

8a8190e8-b120-42fb-9b60-b7ea8e5…

---

H3: Water Well Drilling

The DSL135 power swivel is also used in:

• Water well drilling

• Geothermal drilling

• Construction drilling

Its compact structure makes it suitable for medium and small drilling rigs.

---

H3: Geological Core Sampling

For geological exploration projects, the DSL135 provides stable torque and rotation speed, which helps protect coring tools and drill strings during rock core extraction.

8a8190e8-b120-42fb-9b60-b7ea8e5…

---

H2: DSL135 Power Swivel Technical Specifications

---

H2: Working Principle of DSL135 Hydraulic Power Swivel

The DSL135 power swivel operates using a closed hydraulic circuit system.

The working process includes:

1. The diesel engine drives the hydraulic pump system.

2. The hydraulic pump converts mechanical energy into hydraulic pressure.

3. Hydraulic oil flows through high-pressure filters and pipelines.

4. The hydraulic motor in the swivel receives hydraulic energy.

5. The motor rotates the central pipe through a gear reduction mechanism.

6. The central pipe rotates the drill string for drilling operations.

Drilling fluid flows through the gooseneck, wash pipe, and central pipe, allowing circulation during drilling.

8a8190e8-b120-42fb-9b60-b7ea8e5…

---

H2: Components of DSL135 Power Swivel System

The DSL135 hydraulic drilling swivel consists of two main systems.

Hydraulic Swivel Assembly

Main components include:

• Central pipe

• Hydraulic motor

• Gear reduction system

• Bearings

• Goose neck

• Wash pipe

These components provide rotational power and drilling fluid circulation.

---

Hydraulic Power Control Unit

The power control system includes:

• Diesel engine pump set

• Hydraulic oil tank

• Traction winch

• Hydraulic hose reel

• Auxiliary pump console

• Remote hydraulic control console

This system supplies hydraulic energy and controls swivel operation.

8a8190e8-b120-42fb-9b60-b7ea8e5…

---

H2: Why Choose DSL135 Drilling Power Swivel?

The DSL135 hydraulic power swivel offers several advantages for drilling contractors:

• High torque drilling capability

• Reliable hydraulic drive system

• Stepless speed control

• Compact skid-mounted design

• Suitable for drilling and workover rigs

• Reduced equipment wear

• Improved drilling efficiency

These features make it a reliable solution for oilfield drilling operations worldwide.

---

H2: FAQ – DSL135 Power Swivel

What is the maximum torque of the DSL135 power swivel?

The DSL135 provides a maximum torque of 15,500 N·m, which is suitable for many drilling and workover operations.

---

What type of drilling rigs can use DSL135?

The DSL135 can be installed on most workover rigs and drilling derricks, especially medium-sized rigs used for oil, gas, and water well drilling.

---

Does the DSL135 support remote control operation?

Yes. The system includes a remote hydraulic control console, allowing operators to control speed and rotation direction safely from a distance.

---

What engine powers the DSL135 hydraulic system?

The standard configuration uses a Cummins 6CTA8.3-C260 diesel engine with 260 HP.

---

Can DSL135 operate in cold environments?

Yes. The equipment is designed to operate in temperatures from -20°C to +55°C, making it suitable for various field environments.

---
