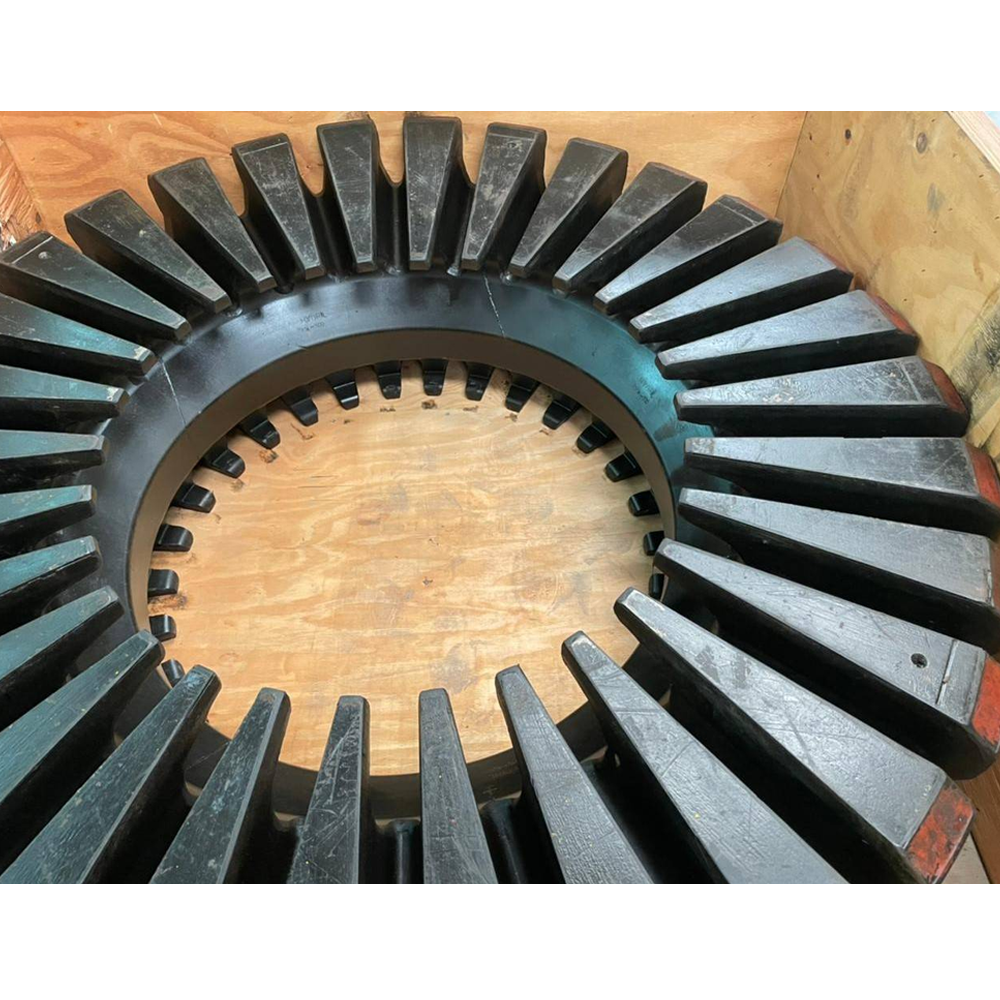

Camtop Diverter Packing Element (P/N 1003275-02) is engineered for Hydril MSP 29-1/2” 500 PSI diverter blowout preventers. Molded-in steel segments with top and bottom flanges anchor the packing unit securely, controlling rubber extrusion under well pressure. Designed for reliable operation in riser diverter systems during top-hole drilling. Fully interchangeable with Hydril OEM specifications.
Diverter Packing Element for Hydril MSP 29-1/2” 500 PSI Diverter P/N 1003275-02
Description
The molded-in steel segments with top and bottom flanges anchor the packing unit securely within the diverter, controlling rubber extrusion and flow during well pressure sealing. By keeping the rubber under compression, tears and abrasions are effectively resisted, ensuring long-lasting performance.
The BOP Packing Element is a critical component of a Hydril MSP diverter blowout preventer (BOP), designed to seal and control fluid flow in high-pressure applications. This new and unused packing unit ensures reliable performance and safety in drilling operations. Key Uses: – Oil and Gas Exploration – Offshore Drilling – Land-based Drilling – Well Control Equipment – Hydraulic Systems
| BOP Information Sheet* Hydril MSP DIVERTER BOP 29-1/2″500 PSI | ||
| 1 | Type | 29-1/2″500 PSI MSP DIVERTER BOP |
| 2 | Manufacturer | Hydril |
| 3 | Height (Old Configuration) | 67.810″/1.723 m |
| 4 | Height (New Configuration) | 67.840″/ 1.722 m |
| 5 | Weight (Approximate – varies with connectors) | 24,500 lbs./ 11113.013 kilograms |
| 6 | dearanoe Diameter (Old and New Confguration) | 82.5″/2.096 m |
| 7 | Hiydraulic operating pressure | ≤ 1,500 PSI/ 103.422 bar |
| 8 | Vax hydraulic pressure | 1.500 PS1/ 103.422 bar |
| 9 | (2) dlose ports size | 1-1/4″ NPT |
| 10 | Open volume | NA |
| 11 | Cose volume | 60 US. Gallons1 227.125 Liters |
| 12 | 29-1/2″ 500 PSl MSP Studded Top Bolts Diameter x Length |
1-3/4″x 13-112″1 44.450 mmx 342.900 mm |
| 13 | Quantity | 28 per studded flange |
| 14 | Bolt Torque | 2,696 ftbs 1 3,655.237 Nm |
| 15 | 29-1/2″ 500 PSl MSP Hanged Bottom Bolts Diameter x Length |
1-3/4″x 9-118″1 44.450mmx 231.775 mm |
| 16 | Quantity | 28 per flange |
| 17 | Bolt Torque | 2.696 ftbs 1 3,655.237 Nm |
| 18 | Hange Gasket (Open-faced Bottom Hange) | R-95/RX-95 |
| 19 | Studded Flange Gasket | R-95/RX-95 |
