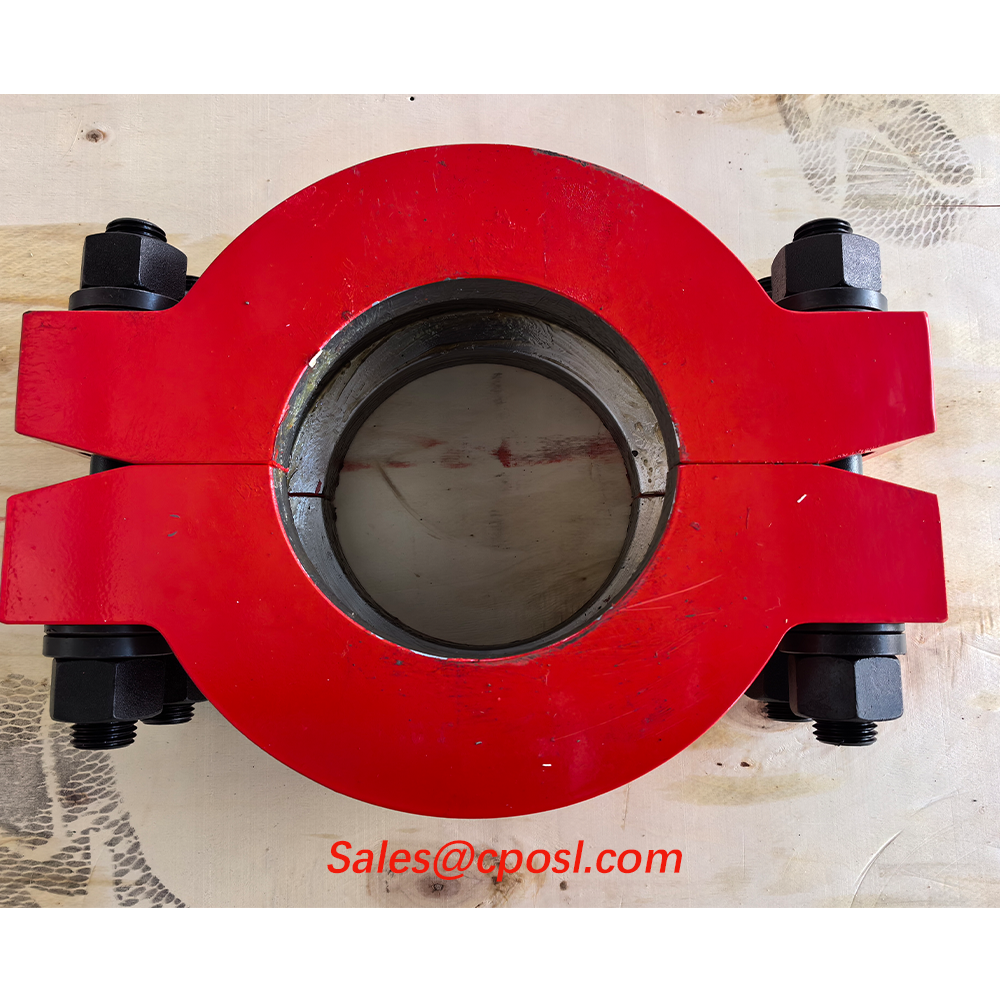

CLAMPS FOR CLAMP HUB CONNECTIONS

Clamp connector is a compact mechanical joint consisting of four basic elements: hubs, sealing, clamps and bolting. During assembly the hubs are drawn together under the twin wedge action of the clamp segments to provide the initial self – energizing seal.

Clamp connector are available as standard from 1” to 12” and supplied in a wide range of materials from Carbon Steel to Duplex Steel and Nickel Alloys.

Category: Clamp Tag: CLAMPS

Description
Reviews (0)

Description

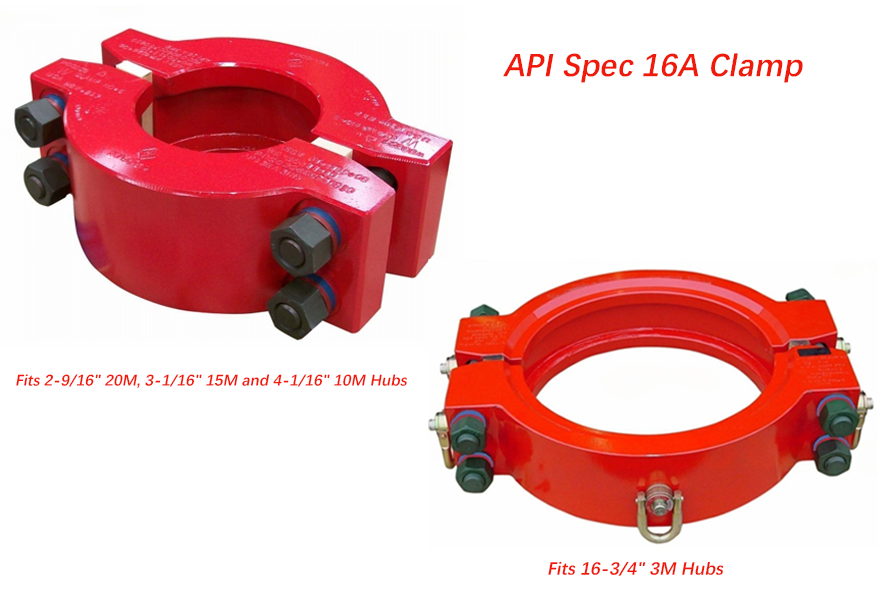

API 16A CLAMP

• Fit all hub connections specified in API Spec 16A plus many other popular hubconnections.

• Made from Forged Low Alloy Steel, qualified to the same standards API Spec 16A requires for flanges.

• 100% dimensional, hardness and magnetic particle inspected.

• Self-aligning bearing washers to evenly distribute bolting stress.

• Special coatings on bolts, nuts, and washers to ease make and break of clamp hub

connections.

• Swivel lifting eyes on larger sizes, to make handling easy, quick and safe.

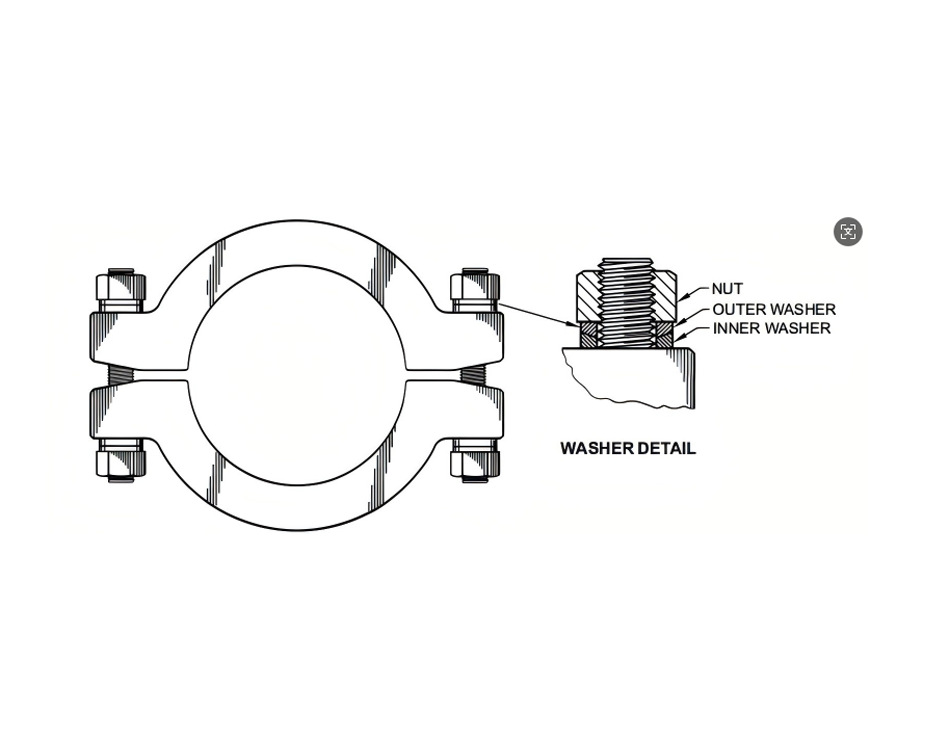

Table 1-3

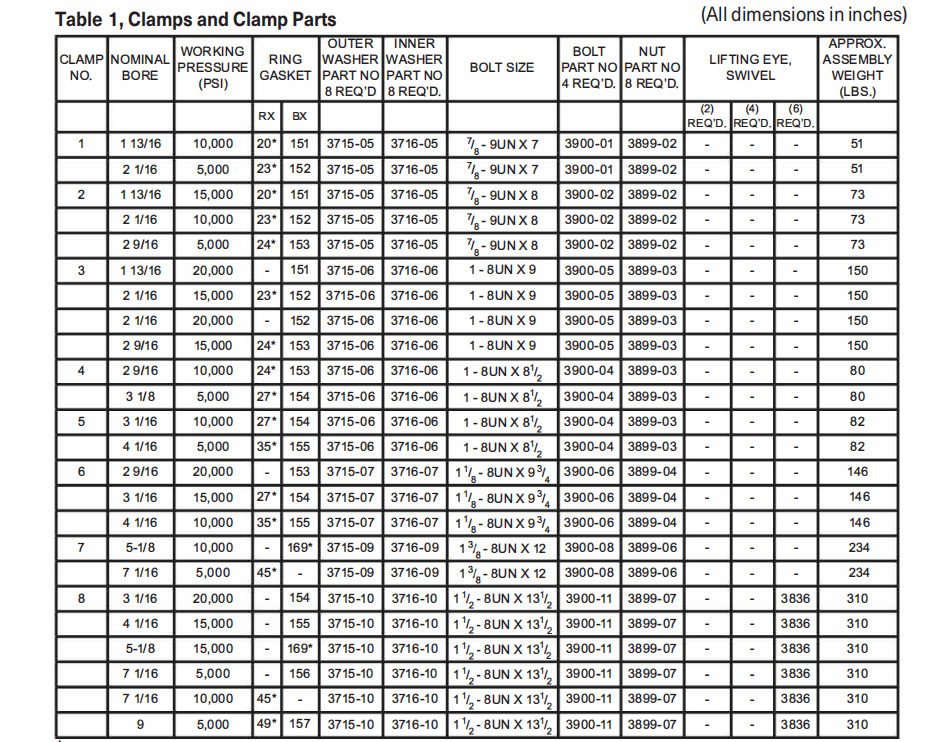

Table 1

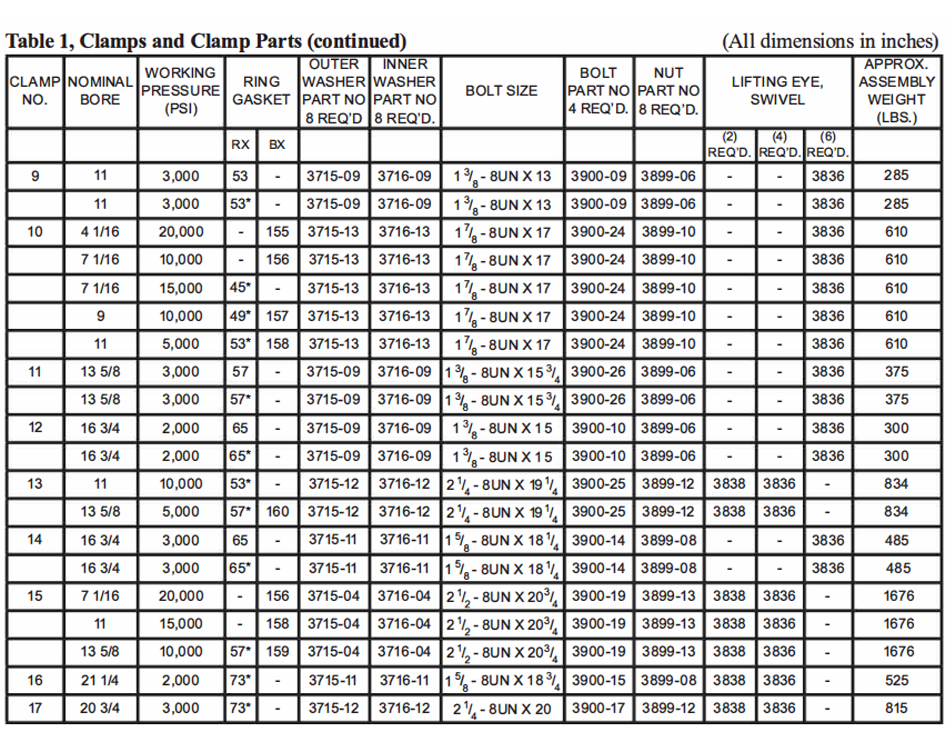

Table 1-1

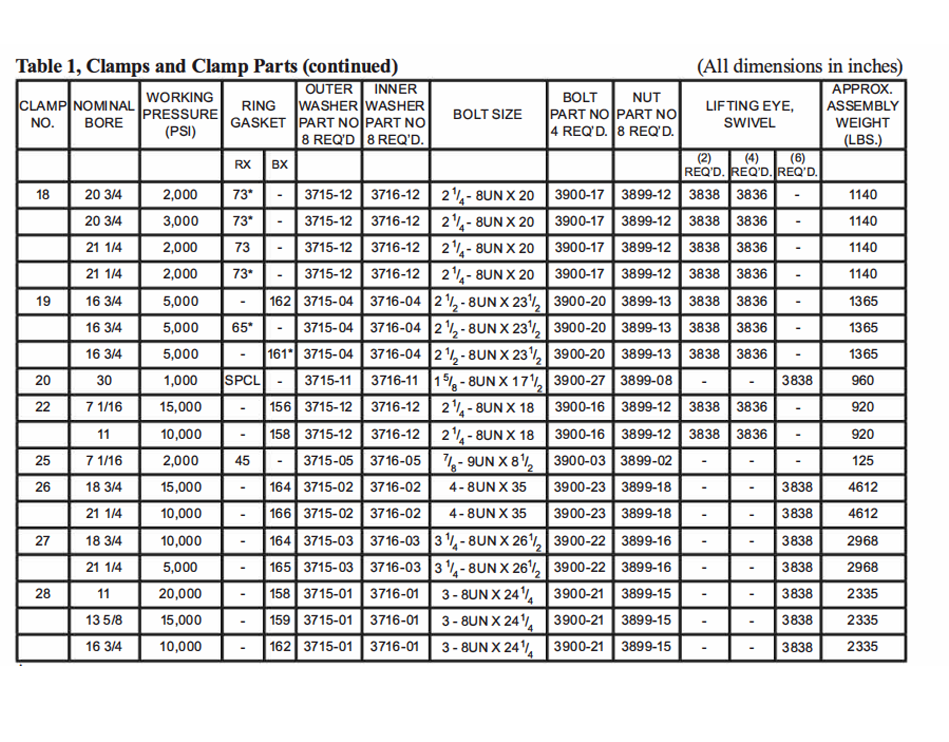

Table 1-2

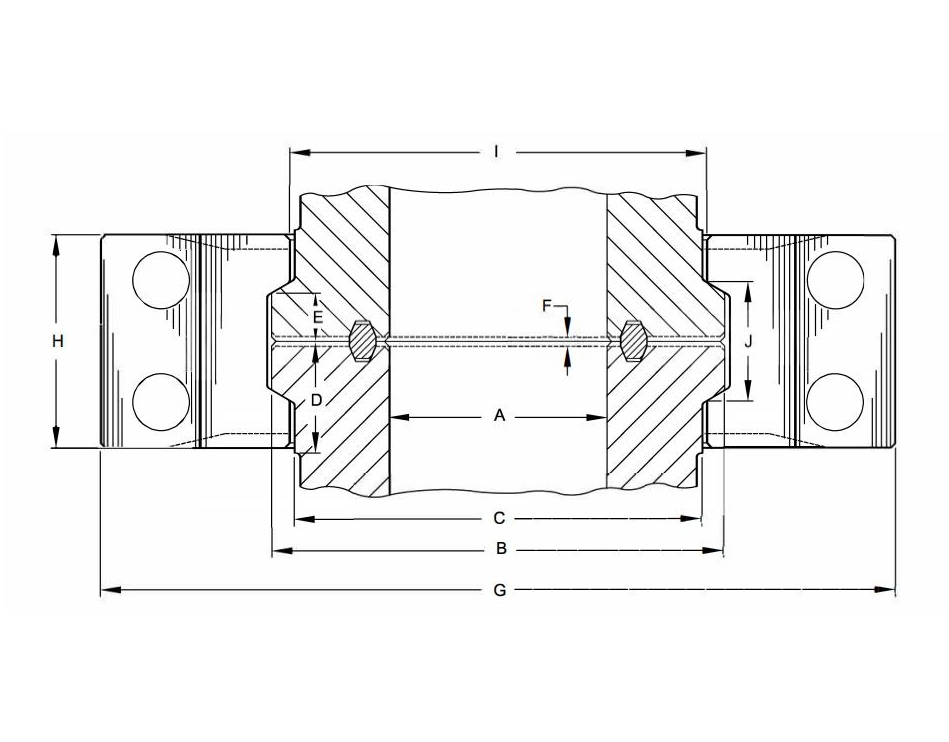

Table 2

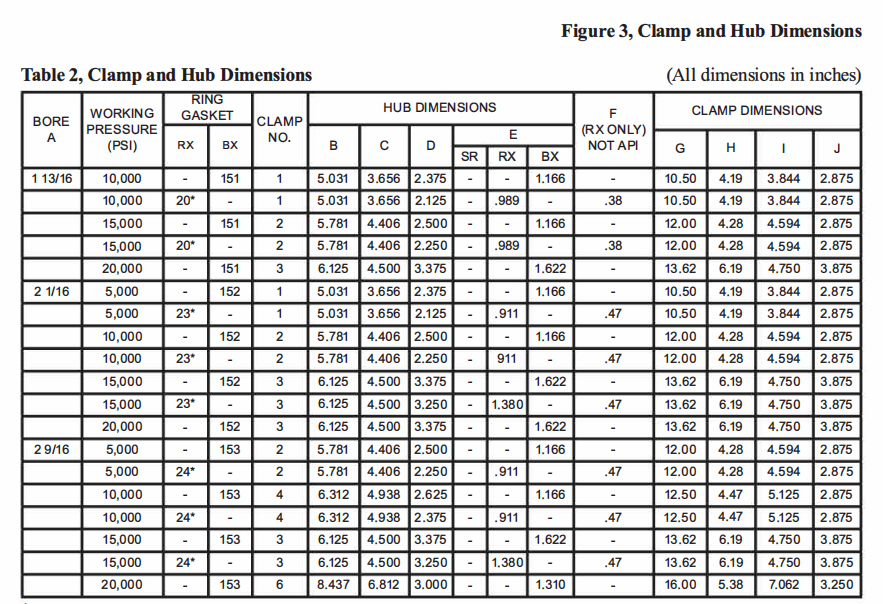

Table 2-1

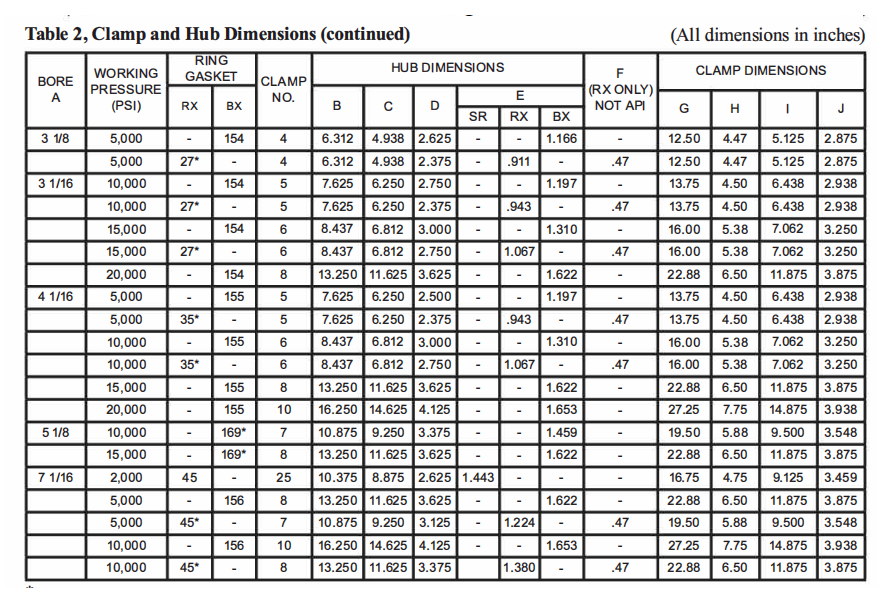

Table 2-2

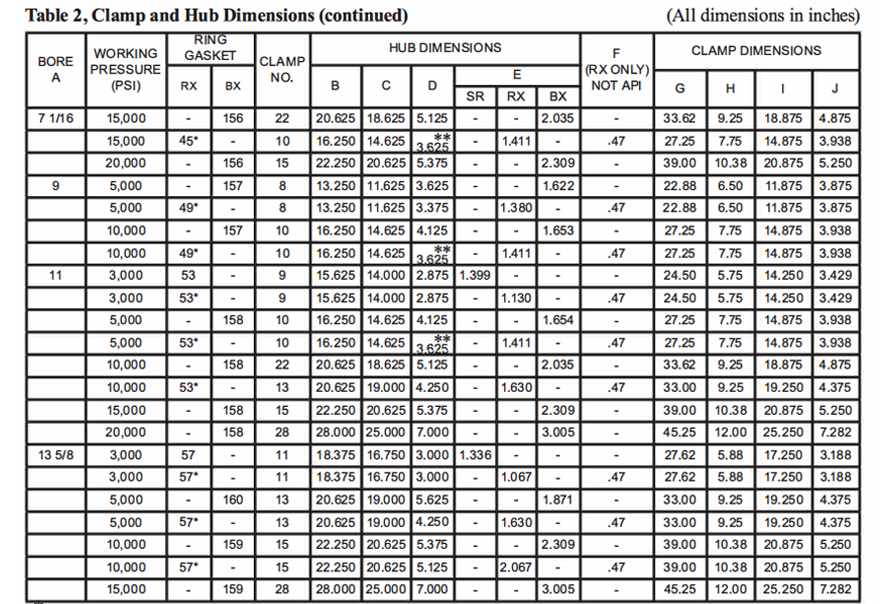

Table 2-3

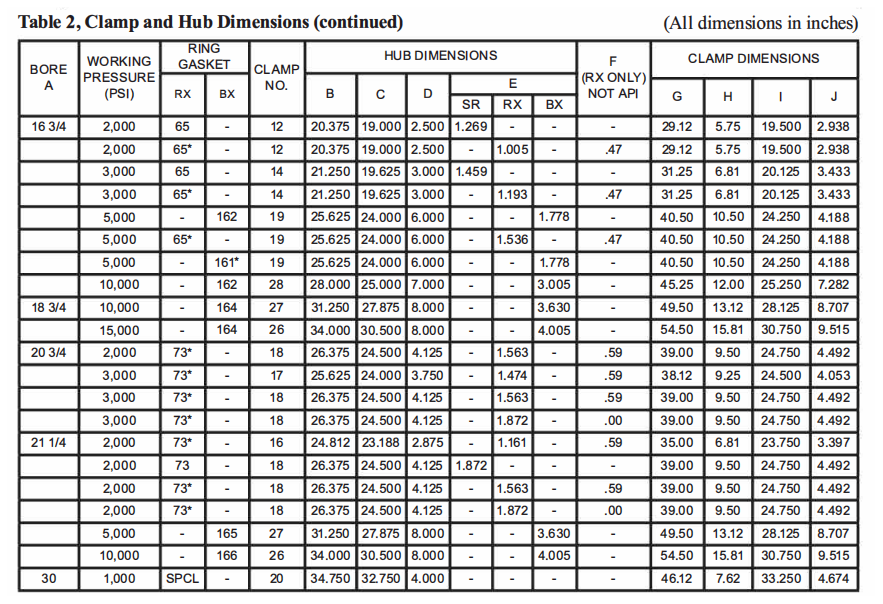

Table 2-4
