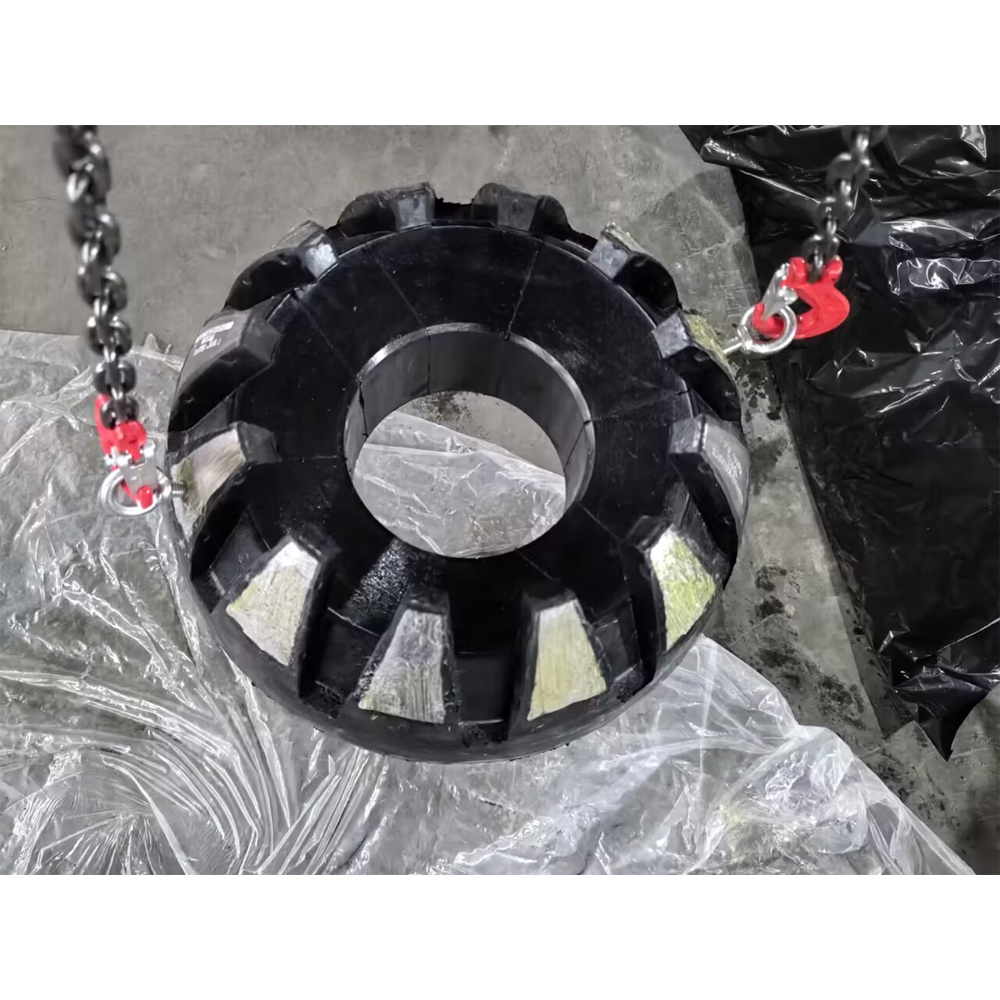

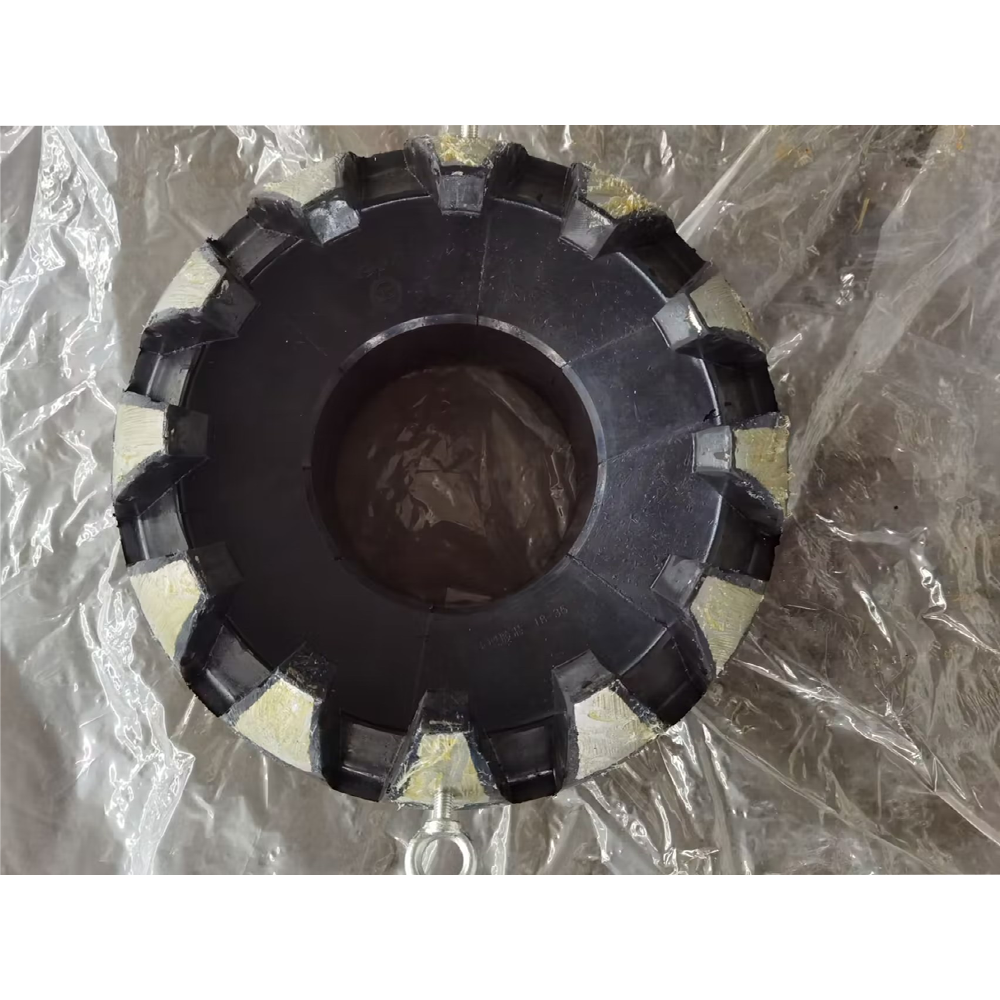

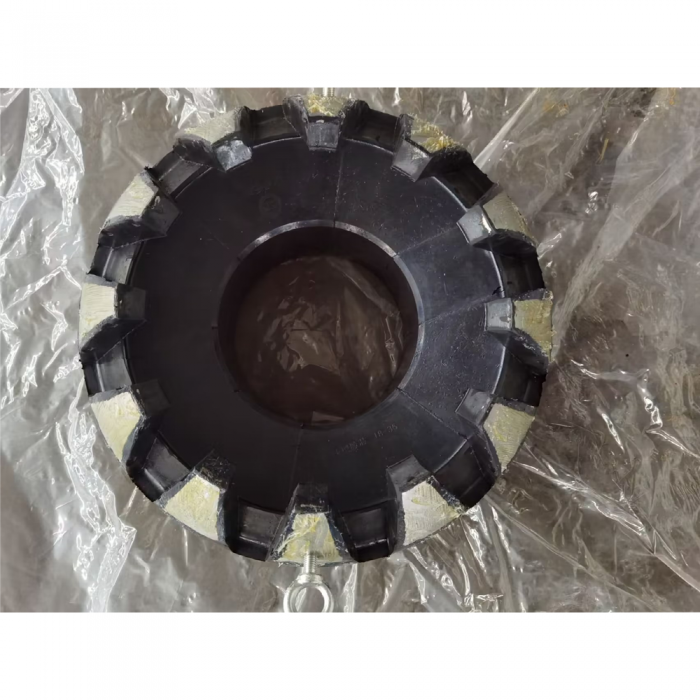

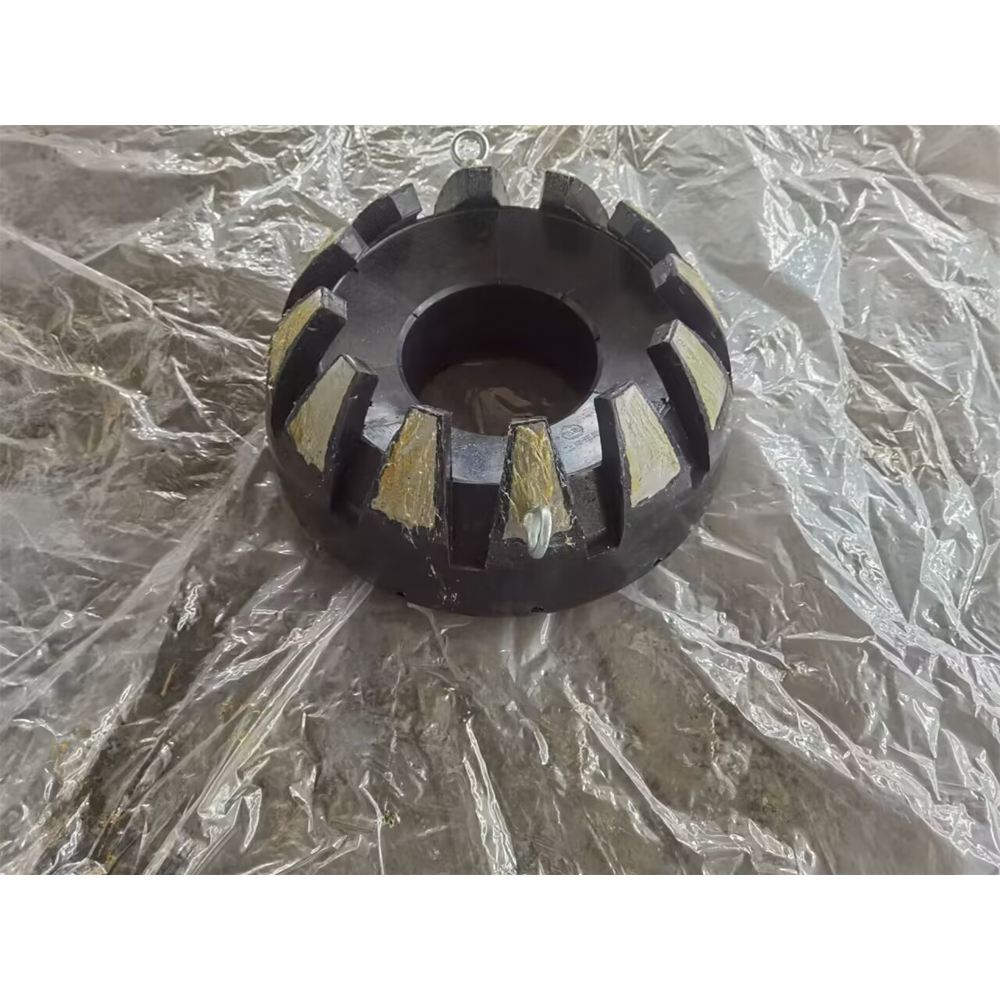

Camtop Annular BOP Packing Element 7-1/16” 5000 PSI (Model FH18-35) is a high-performance sealing element developed for compact annular blowout preventers. The rubber body is made from a proprietary polymer alloy compound with high-strength steel reinforcement, providing superior resistance to extrusion and fatigue. Suitable for workover, coiled tubing, and intervention operations. API 16A certified.
Annular BOP Packing Element 7-1/16” 5000 PSI FH18-35 | API 16A
Description
The packing element for Annular BOP FH18-35 is a special high performance product which is developed and updated lately for preventing the blowout. The packing element is combined by the main body which is made up of the independent innovation rubber based polymer alloy material and the high strength metal frame, which conforms to the USA 16A, SATM D412, D624, D2240 and D471 standard. It is suitable for the drilling work on the oil field, which shares a high cost performance comparing to the other same type packing elements. And the repair seal kits are equipped.
BOP PART NAME : top sealing, front sealing, pipe ram, blind ram, slip ram, shear ram, spherical packer, bonnet, piston, shell.

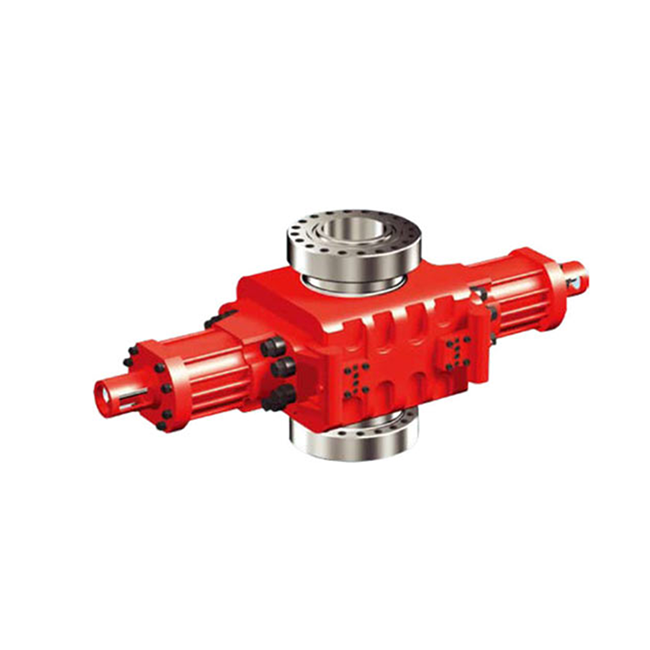

APPLY TO BELOW BOP : Annular BOP, Single Ram BOP, Double Ram BOP, Shear Ram BOP
| BOP Size and Working Pressure | Spherical Sealing Element Size | |||
|---|---|---|---|---|
| OD(mm) | ID(mm) | H(mm) | ||
| 7 1/16″-5,000psi | FH18-35 | 478 | 189.5 | 219 |
| 9″-5,000psi | FH23-35 | 616 | 242 | 290 |
| 11″-3,000psi | FH28-21 | 703 | 296 | 284 |
| 11 ″-5,000 psi | FH28-35 | 703 | 290 | 319 |
| 11 ″-10,000 psi | FH28-70 | 755 | 310 | 344 |
| 13 5/8 ″-5,000 psi | FH35-35 | 810 | 360 | 368 |
| 13 5/8 ″-10,000 psi | FH35-70 | 833 | 360 | 365 |
| 20 3/4″-3,000psi | FH53-21 | 982 | 545 | 400 |
