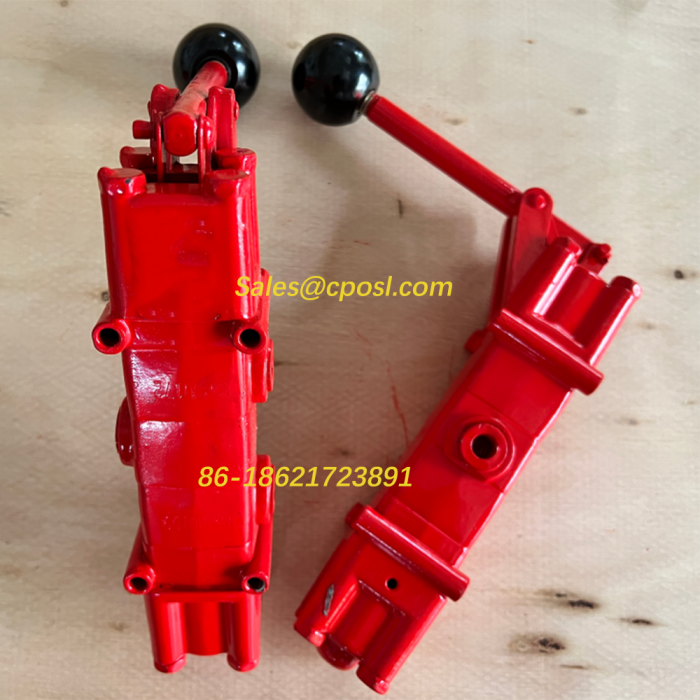

3-position 4-way pneumatic sliding valve (model 34TQHY-L6-F) for BOP control systems. Air-operated directional control valve for BOP closing manifold pneumatic circuits.
3-Position 4-vejs luftglideventil 34TQHY-L6-F styresystem af overflademonteret BOP

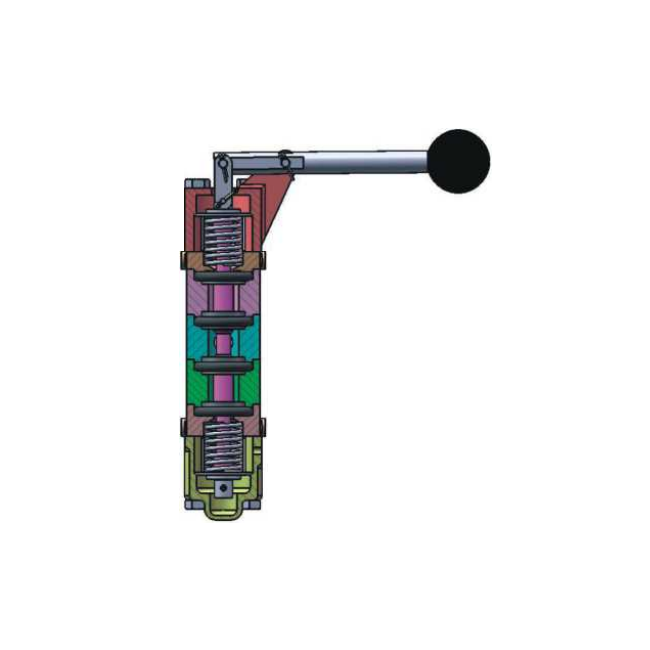

| 三位四通空气滑阀3-Position 4-Way Air Sliding Valve（34TQHY-L6-F） | ||||
|---|---|---|---|---|

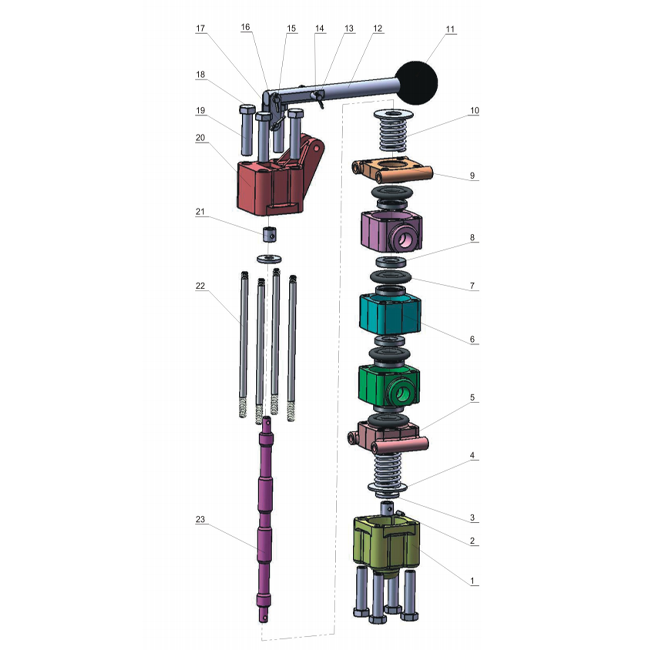

| In repair kit维修包 | (Item)序号 | 图号(Part No.) | 名称(Description) | 数量Qty |
| 1 | 3 4TQF-00-01 | 阀体 I Valve Body I | 1 | |
| 2 | GB/T879-2000 3×10 | 弹性圆柱销 Crosshead Pin | 1 | |
| 3 | 3 4TQF-00-11 | 垫圈Washer | 2 | |
| 4 | 3 4TQF-00-10 | 挡圈Retain ring | 2 | |
| 5 | 3 4TQF-00-03 | 阀体 II Valve Body II | 1 | |
| 6 | 3 4TQF-00-07 | 阀体 III ValveBodyIII | 3 | |
| ▲ | 7 | 3 4TQF-00-04 | 双O形密封圈Double O-Ring | 4 |
| 8 | 3 4TQF-00-05 | 骨架 Frame | 6 | |
| 9 | 3 4TQF-00-08 | 阀体 IV ValveBodyIV | 1 | |
| 10 | 3 4TQF-00-02 | 弹簧 Spring | 2 | |
| 11 | 1/4KQKF -00 -20 | 手柄 Handle | 1 | |
| 12 | 3 4TQF-00-14 | 手柄杆 Handle Pin | 1 | |
| 13 | GB/T882-2000A5H11x30 | 销轴 Pin | 1 | |
| 14 | GB/T91 -2000 2×10 | 开口销 Pin | 2 | |
| 15 | GB/T882-2000 5×16 | 销轴 Pin | 1 | |
| 16 | 3.4TQF-00-13 | 连接片 Connecting Strip | 2 | |
| 17 | GB/T882-2000 1.5X10 | 开口销Pin | 1 | |
| 18 | GB/T882-2000 3X16 | 销轴 Pin | 1 | |
| 19 | 3.4TQF-00-15 | 螺帽 Nut | 8 | |
| 20 | 3.4TQF-00-09 | 阀体 V ValveBody V | 1 | |
| 21 | 3.4TQF-00-12 | 套 Sleeve | 2 | |
| 22 | 3.4TQF-00-16 | 双头螺栓 Double Ends Stud | 4 | |
| 23 | 3.4TQF-00-06 | 阀杆 Valve Stem | 1 | |
